Bare Finish Steel Raised Access Floor System

600mm Bare Finish Steel Raised Access Floor System

Date:2014-10-15 09:07:33  Visit:

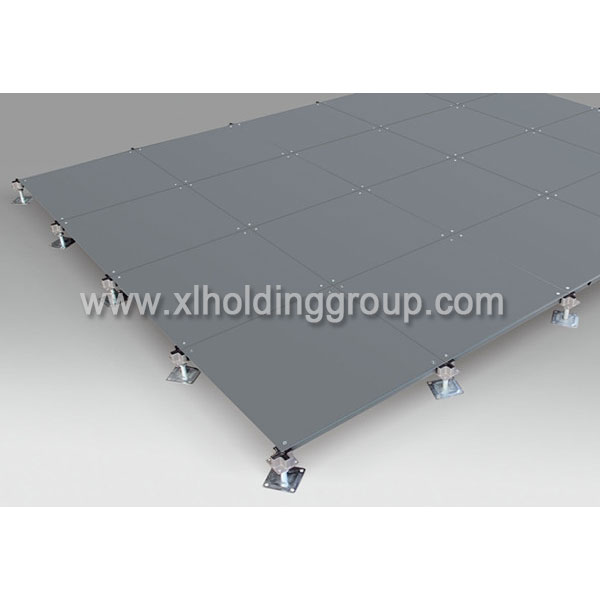

600mm Bare Finish Steel Raised Access Floor System

Product Brief :
  1. Easy and fast installation;

  2. Strong loading capacity;

  3. Low cost but high quality;

  4. Large under space for cabling and wiring;



Product Type : FS440~FS1250

Details


Description


1.Fireproof class A, moistureproof, dustrpoof, corrosion prevention and shockproof

2.High dimensional precision, strong loadability

3.Adjustable height for pedestal, assembly agility

4.Outlet mating trunking at will. Elegant appearance for paving wildly brand top tiles

5.High recycled, convenient removing, saving cost, long performance life


Structure

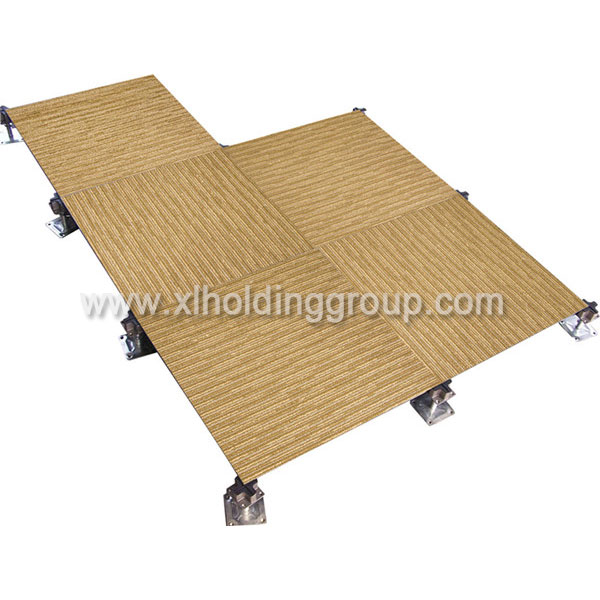

1.panel-Cementitious infill steel welded steel sheel, corner lock hole in four corners, top tiles could be carpet, PVC tiles or other tiles as you like
2.pedestal-die casting cross aluminium top, cross rubber gasket on top, steel structure as base, height could be 50mm ---1000mm
3.sharp top strews lock the panel coner and pedestal


Application


Wide range of the application such as 5 class office Security Union Plaza ,Futures Trading Building, and the place demand cabling and wiring . And the aging building floor's reform


Technical Specification


International
Size(mm)
Fire
Performance
Concentrated load
Impact load
(N)
Ultimated load
(N)
Uniform
Load
(N/m2)
Rolling load(N)
LB
N
KG
10 times
100000
times
FS440
600x600x34
A
≥440
≥1960
≥200
≥295
≥5880
≥9272
1958
1566
FS662
600x600x34
A
≥662
≥2950
≥301
≥445
≥8850
≥1250
2946
2356
FS800
600x600x34
A
≥800
≥3350
≥363
≥536
≥11250
≥16100
3560
2670
FS1000
600x600x34
A
≥1000
≥4550
≥450
≥670
≥13350
≥23000
4450
3560
FS1250
600x600x34
A
≥1250
≥5560
≥567
≥780
≥16680
≥33000
5560
4450


Standard Support Specification



<FFH150mm

FFH150~600mm

>FFH600mm

with stringer


FFH (mm)

Tube Diameter (mm)

Adjustment + (mm)

Adjustment - (mm)

<150

M18

10

20

150~600

M25

25

25

700~900

M32

25

25

1000~1500

M45

25

25
