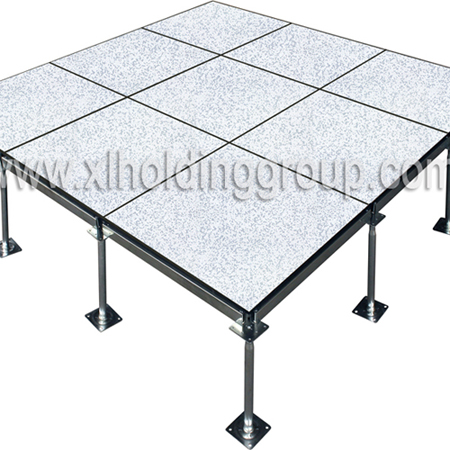

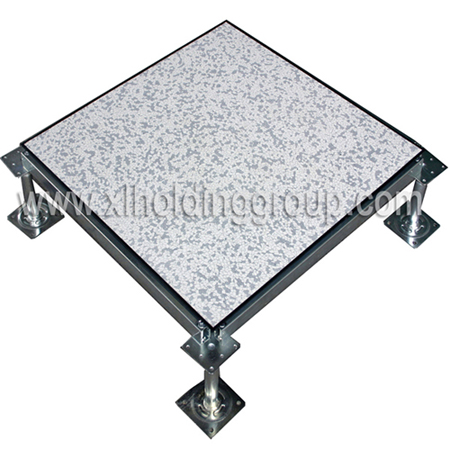

PVC Steel Raised Access Floor

Date：2014-10-17 13:59:07　　Visit：

PVC Steel Raised Access Floor

Product Brief :

1. Antistatic, high dimensional precision, fireproof, high load capacity, flatness and shockproof

2. Elegant appearance for various top tiles like HPL, PVC, ceramic, marble, granite, wood floor

3. Agreeable solution to ground air conditioning system

4. Recyclable, convenient removing, cost saving, long performance life

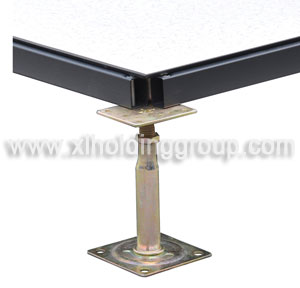

5. Adjustable height of pedestal, stringer connect, assembly agility, large wire and good exchangeability

6. Panel size 600*600 and 24’*24’ available

Product Type : FS662~FS2000

inquiry 点击下载

Details

Characteristics

1. Antistatic, high dimensional precision, fireproof, high load capacity, flatness and shockproof

2. Elegant appearance for various top tiles like HPL, PVC, ceramic, marble, granite, wood floor

3. Agreeable solution to ground air conditioning system

4. Recyclable, convenient removing, cost saving, long performance life

5. Adjustable height of pedestal, stringer connect, assembly agility, large wire and good exchangeability

6. Panel size 600*600 and 24’*24’ available

Applications

All kinds of computer room, network service room, monitoring center, electronic workshop, clean room, dustless chamber etc, and occasions demanding antistatic and air conditioning

5A class office, security union plaza, futures trading building, places demanding cabling and wiring and the aging buildings’ flooring reform

Technical Data

International	Size (mm)	Concentrated Load			Impact Load (N)	Ultimate Load (N)	Uniform Load (N/M²)	Rolling load (N)
International	Size (mm)	LB	N	KG	Impact Load (N)	Ultimate Load (N)	Uniform Load (N/M²)	10 Times	10000 Times
FS662	600x600x35	≥662	≥2950	≥301	≥445	≥8850	≥1250	2946	2356
FS800	600x600x35	≥800	≥3350	≥363	≥536	≥11250	≥16100	3560	2670
FS1000	600x600x35	≥1000	≥4550	≥450	≥670	≥13350	≥23000	4450	3560
FS1250	600x600x35	≥1250	≥5560	≥567	≥780	≥16680	≥33000	5560	4450
FS1500	600x600x35	≥1500	≥6675	≥670	≥1005	≥19892	≥34500	6675	5340
FS2000	600x600x35	≥2000	≥8900	≥906	≥1340	≥26700	≥46000	8900	7120
