500mm Bare Finish Steel Raised Access Floor System
500mm Bare Finish Steel Raised Access Floor System
1.Fireproof class A, moistureproof, dustrpoof, corrosion prevention
2.High dimensional precision, strong loadability and shockproof
3.Adjustable height for pedestal, assembly agility, large wire, good exchangeability
4.Elegant appearance for paving wildly brand top tiles
5.Solve traditional troubles of wire aged, short circuit etc caused by cement, brick, wood floor embedded the wires in advanced.
6.High recycled, convenient removing, saving cost, long performance life
Details
Description
1.Fireproof class A, moistureproof, dustrpoof, corrosion prevention
2.High dimensional precision, strong loadability and shockproof
3.Adjustable height for pedestal(applied patent), assembly agility, large wire, good exchangeability
4.Outlet mating trunking at will. Elegant appearance for paving wildly brand top tiles
5.Solve traditional troubles of wire aged, short circuit etc caused by cement, brick, wood floor embedded the wires in advanced.
6.High recycled, convenient removing, saving cost, long performance life
|
|
Structure

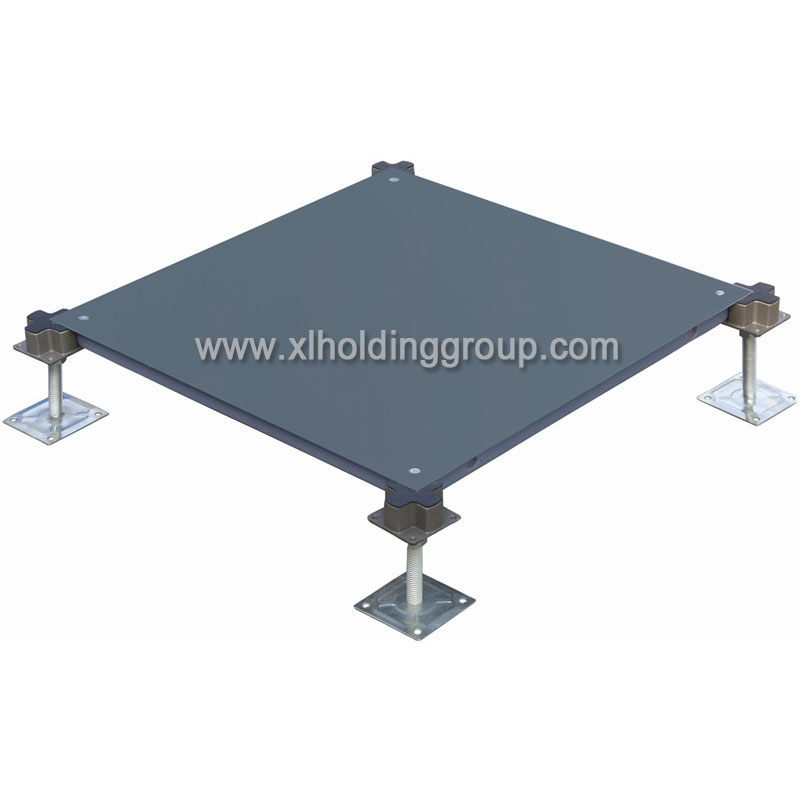

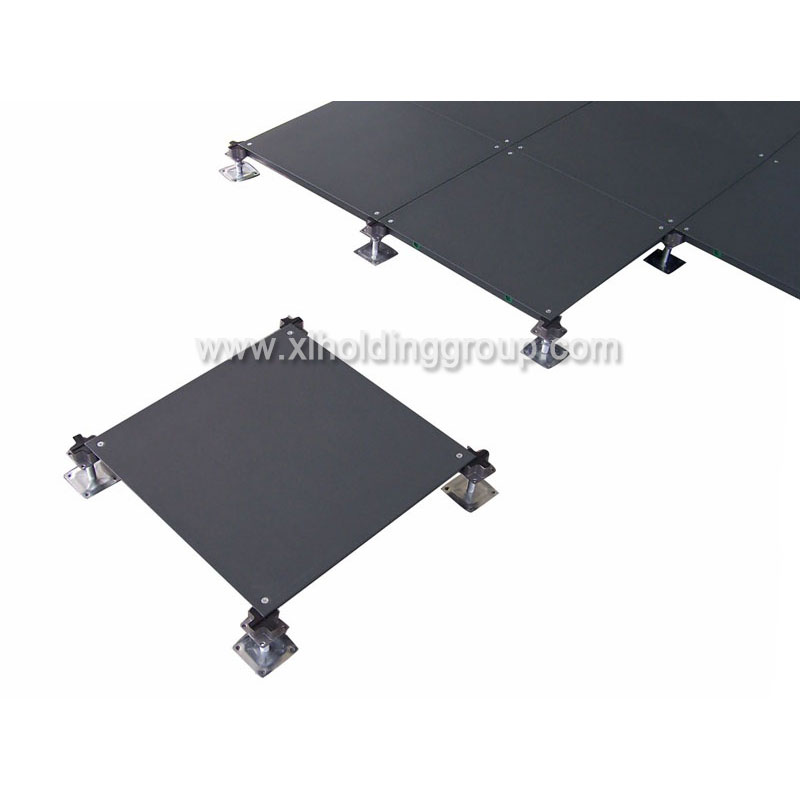

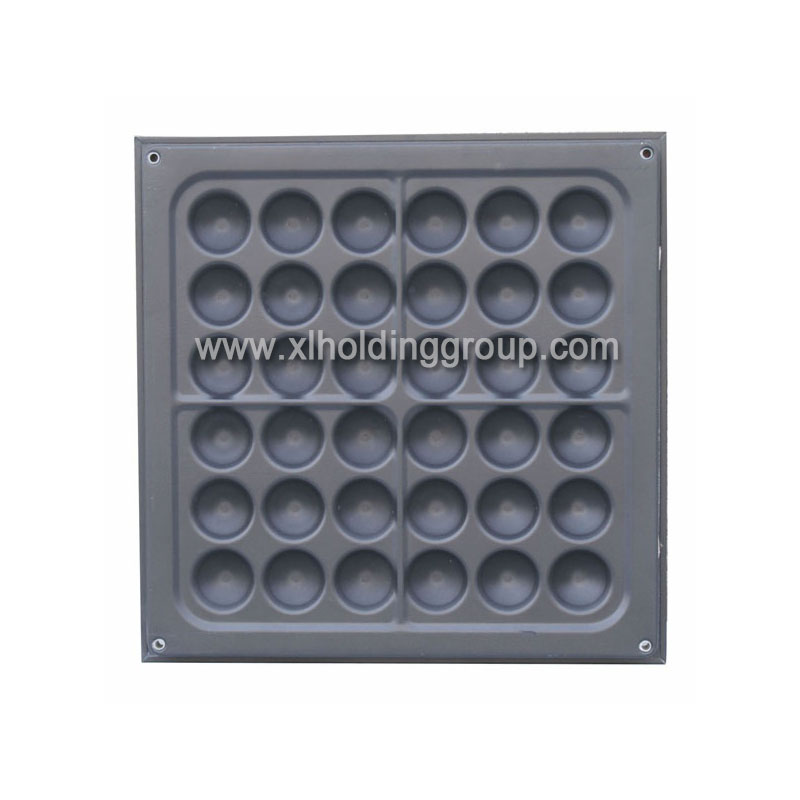

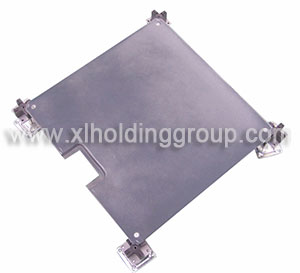

1. panel-Cementitious infill steel welded steel sheel, corner lock hole in four corner, top tiles could be carpet, PVC tiles or other tiles as you like
2. pedestal-die casting cross aluminium top,cross rubber gasket on top, steel structure as base, height could be 50mm ---1000mm
3. sharp top screws lock the panel coner and pedestal
Application
Wide range of the application such as 5 class office, Security Union Plaza, Futures Trading Building, and the place demand cabling and wiring, and the aging building floor's reform
Technical Specification
International | Size(mm) | Fire Performance | Concentrated load | Impact load (N) | Ultimated load (N) | Uniform Load (N/m2) | Rolling load(N) | |||
LB | N | KG | 10 times | 100000 times | ||||||
FS440 | 500x500x28 | A | ≥440 | ≥1960 | ≥200 | ≥295 | ≥5880 | ≥9272 | 1958 | 1566 |
FS662 | 500x500x28 | A | ≥662 | ≥2950 | ≥301 | ≥445 | ≥8850 | ≥1250 | 2946 | 2356 |
FS800 | 500x500x28 | A | ≥800 | ≥3350 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
FS1000 | 500x500x28 | A | ≥1000 | ≥4550 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |

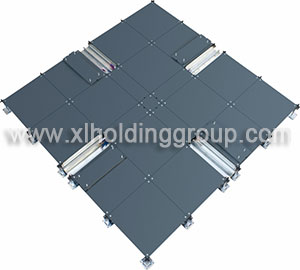

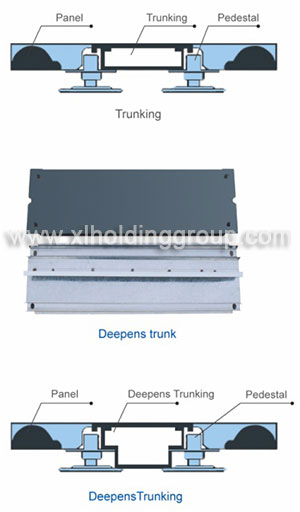

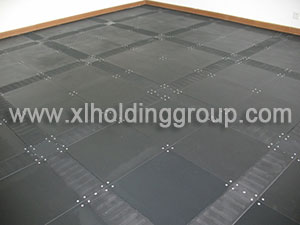

Bare Finish Steel Raised Access Floor+Trunking
|
|
Case

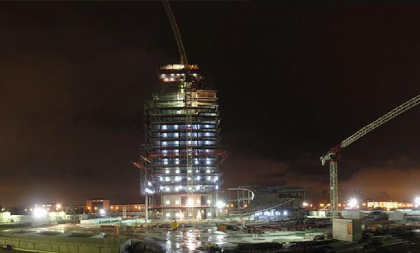

Azerbaijan SOCAR Tower 23350m2

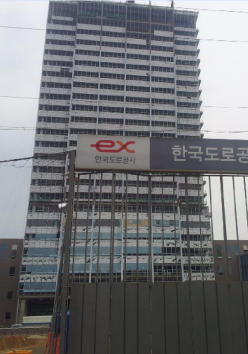

Korea Express-way new building |

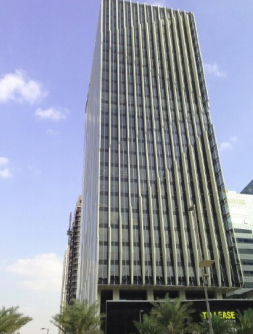

Abu Dhabi UAE,International Tower |
