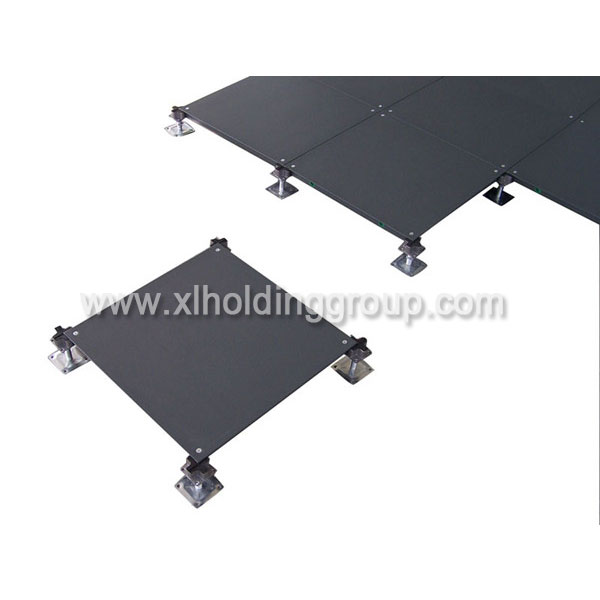

600mm OA Network Raised Access Floor System
Date：2014-09-25 09:43:25 Visit：
600mm OA Network Raised Access Floor System
Product Brief :
·High dimensional precision ,Strong loadability and shockproof.

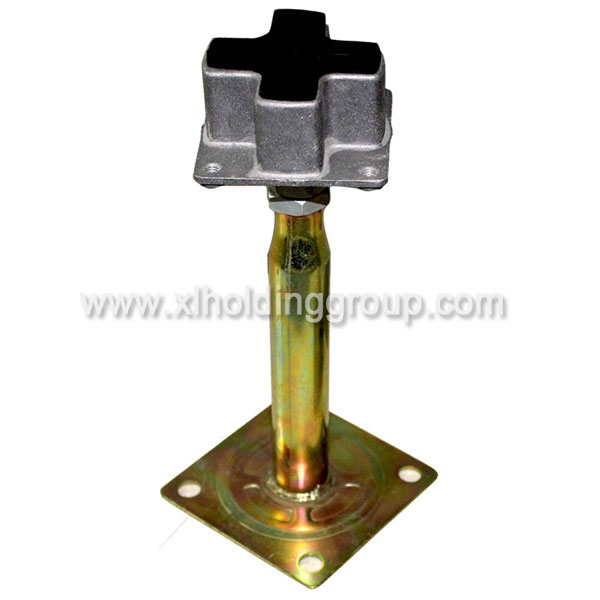

·Adjustable height for pedestal (applied patent), assembly agility,
large wire, good exchangeability.
·High recycled, convenient removing, saving cost, long performance
life.
Product Type :
Details
Specification
| International | Size(mm) | Fire performance | Concentrated load | load (N) | Ultimate load (N) | Uniform load (N/㎡) | Rolling load (N) | |||
| LB | N | Kg | 10 Times | 10000 Times | ||||||
| FS440 | 600*600*34 | A | ≥440 | ≥1960 | ≥200 | ≥295 | ≥5880 | ≥9720 | 1958 | 1566 |
| FS662 | 600*600*34 | A | ≥662 | ≥2950 | ≥301 | ≥445 | ≥8850 | ≥12500 | 2946 | 2356 |
| FS800 | 600*600*34 | A | ≥800 | ≥3560 | ≥363 | ≥536 | ≥10680 | ≥16100 | 3560 | 2670 |
| FS1000 | 600*600*34 | A | ≥1000 | ≥4450 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
| FS1250 | 600*600*34 | A | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥16680 | ≥33000 | 5560 | 4450 |
| FS1500 | 600*600*34 | A | ≥1500 | ≥6660 | ≥680 | ≥1005 | ≥19980 | ≥34500 | 6675 | 5340 |
