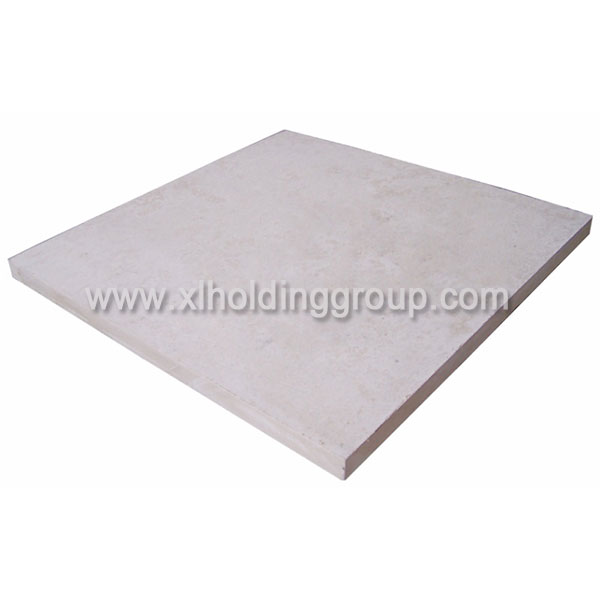

Calcium Sulphate Board
Details
Characteristics
1. Environment friendly calcium sulphate board.
2. Anti-static, High dimensional precision, strong loading ability and shockproof, fireproof.
3. Outlet mating.
Elegant appearance for paving wildly brand top tiles. Being stable performance in humidity temperature.
Calcium sulphate floor(The world leading calcium sulphate technology)
XL have researched the calcium sulphate for many years, the loading capacity of this floor from XL better than any other suppliers, and the purity of calcium sulphate in the panel more than 85% which has reached the international standard.
Calcium sulphate panel make the environment friendly plant's firbre as the reinforcement material, and then solidify the calcium sulphate crystals, and after the pulse pressing process done. has become the newest one of raised access floor, because the good furthers in environment friendly, fireproof, high loading capacity and flatness and so on.
Technical Specification
International | Size(mm) | Fire Performance | Concentrated load | Impact load (N) | Ultimated load (N) | Uniform Load (N/m2) | Rolling load(N) | |||
LB | N | KG | 10 times | 100000 times | ||||||
FS800 | 600x600 | A | ≥800 | ≥3350 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
FS1000 | 600x600 | A | ≥1000 | ≥4550 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
FS1250 | 600x600 | A | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥16680 | ≥33000 | 5560 | 4450 |
FS1500 | 600x600 | A | ≥1500 | ≥6675 | ≥670 | ≥1005 | ≥19892 | ≥34500 | 6675 | 5340 |
*panel thickness available from 25mm to 38mm
