HPL coated wood core raised access floor
HPL coated wood core raised access floor
1.High density particle board, PVC/ABS edge trim, sound proof.
2.High dimensional precision, strong loading ability and shockproof.
3.Outlet mating. Elegant appearance for paving wildly brand top tiles.
4.light weight, convenient removing, saving labor.
Details

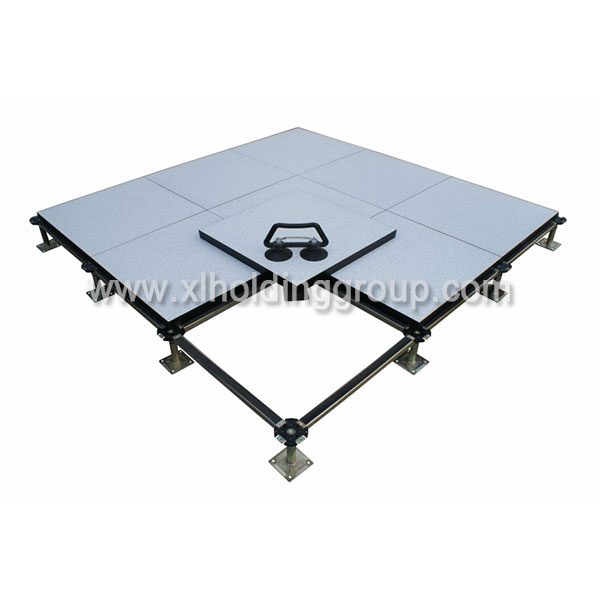

HPL coated Wood Core Raised Access Floor
Description
1.High density particle board, PVC/ABS edge trim, sound proof.
2.High dimensional precision, strong loading ability and shockproof.
3.Outlet mating. Elegant appearance for paving wildly brand top tiles.
4.light weight, convenient removing, saving labor.
|
|

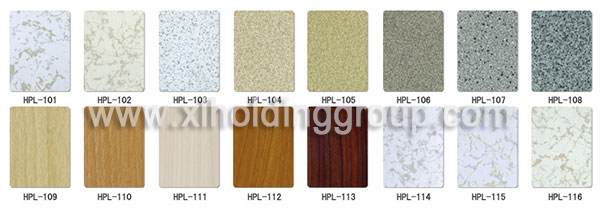

We have many HPL tile colors to choose from!

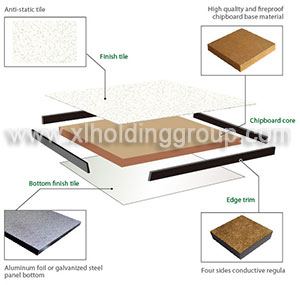

Structure

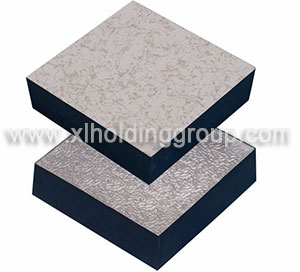

1.panel- 30/38mm thickness particle board, HPL/ABS corvered four edges,steel/aluminium on the bottom plate, wildly brand top tiles is HPL.

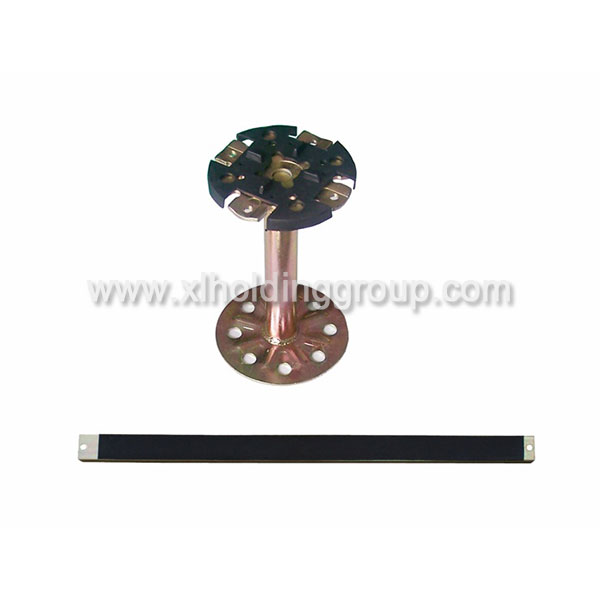

2.Accessories -die casting steel structure pedestal plastic gasket on top, height could be 70mm ---1500mm, with or without square tube stringer steady connect the system
Application
Wide range of the application, all kinds of computerroom, network service engine room, control room, montoring cabin, top grade office
Case
|
|

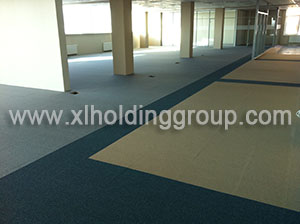

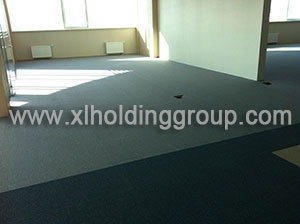

Yekaterinburg, Russia, bank | |
Type Technology parameter
| International | Size(mm) | Fire Performance | Concentrated load | Impact load (N) | Ultimated load (N) | Uniform Load (N/m2) | Rolling load(N) | |||
| LB | N | KG | 10 times | 100000 times | ||||||
| FS440 | 600x600x32 | B1 | ≥440 | ≥1960 | ≥200 | ≥295 | ≥5880 | ≥9720 | 1958 | 1566 |
| FS662 | 600x600x40 | B1 | ≥662 | ≥2950 | ≥301 | ≥445 | ≥8850 | ≥12500 | 2946 | 2356 |
| FS800 | 600x600x40 | B1 | ≥800 | ≥3560 | ≥363 | ≥536 | ≥10680 | ≥16100 | 3560 | 2670 |
| FS1000 | 600x600x40 | B1 | ≥1000 | ≥4450 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
Standard Pedestal SPEC
FFH(mm) | tub diameter(mm) | adjustment +(mm) | adjustment -(mm) |
≦600 | ф25 | 25 | 25 |
700~900 | ф32 | 25 | 25 |
1000~1500 | ф42 | 25 | 25 |
Standard Stringer SPEC: 535x20x30mm
