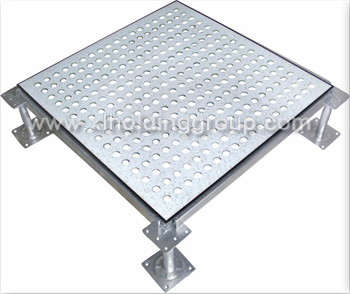

23% Ventilation Steel Air-flow Raised Floor
23% Ventilation Steel Air-flow Raised Floor
1.With wildly brand top tiles, such as PVC, HPL
2.Adjustable height for pedestal, assembly agility, large wire
3.High recycled, convenient removing, saving cost
4.Prevent static validly, fireproof, dustproof
Details
Material

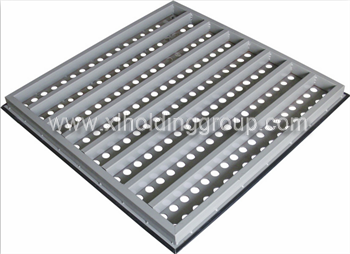

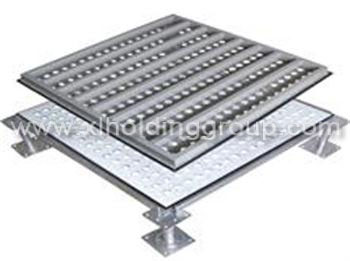

Full steel, HPL or PVC punched tile, surface punched panel which is SPCCID hard steel of Shanghai Bao steel, manual welding for the bottom square tube, origination domestic. Imported paint, conductive rim, pedestal, stringer are pressured forming with steel, lead screw could adjust height.
Characteristics
1.Prevent static validly; fireproof, dustproof;
2.Manual welding, high mechanical strength, strong bearing capacity, good shock-resistance;
3.Except for other function, possess ventilation function;
4.16%~65% ventilation rate, satisfies different environmental requirements on purge.
5.Also called air-flow raised floor,ventilation raised floor,perforated raised floor.
Range of application
All manner of computer room, network service room monitor control center, electronic workshop, clean room, dauntlessness chamber etc and occasions which require on antistatic and air conditioning.
|
|
Technical Specificaton
International | Size(mm) | Fire Performance | Concentrated load | Impact load (N) | Ultimated load (N) | Uniform Load (N/m2) | Rolling load(N) | |||
LB | N | KG | 10 times | 100000 times | ||||||
FS440 | 600x600 | A | ≥440 | ≥1960 | ≥200 | ≥295 | ≥5880 | ≥9272 | 1958 | 1566 |
FS662 | 600x600 | A | ≥662 | ≥2950 | ≥301 | ≥445 | ≥8850 | ≥1250 | 2946 | 2356 |
FS800 | 600x600 | A | ≥800 | ≥3350 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
FS1000 | 600x600 | A | ≥1000 | ≥4550 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
FS1250 | 600x600 | A | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥16680 | ≥33000 | 5560 | 4450 |
Size :600*600mm
Thickness: 30/32/35/40mm
Material : all steel
