Wire Mesh Cable Tray
Wire Mesh Cable Tray

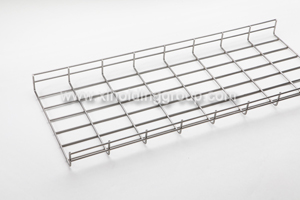

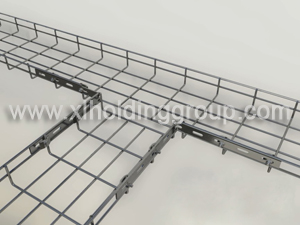

Solid Stainless Steel Cable Basket Tray is specially used for various cables in Telecom, Netcom, radio and television into the terminal equipment.
1. zinc galvanzied so strong enough to withstand short circuits
2. Good-looking, diverse styles
3. High strength capacity, easy installation
4. Convenient laying and down cable and simple maintenance in future
Details
Characteristics
Wide application to places demanding wiring and cable

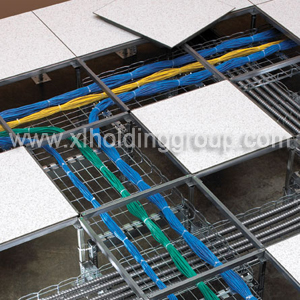

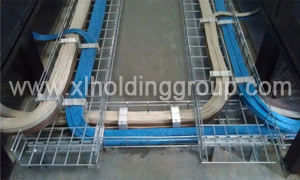

Agreeable solution to wiring in office building, data center, industrial application
Great flexibility, suitable for numerous circumstances
High load capacity, big volume for cables
Surface treatment
Electro-galvanized/ Hot dipped galvanized/ Powder coating/ Acid washing polishing
Specification
XL-50 Height Series Data
Item | Height (mm) | Width (mm) | Length (mm) | Dia (mm) | Weight (KG) |
XL50-50 | 50 | 50 | 3000 | 5 | 3.14 |
XL50-100 | 50 | 100 | 3000 | 5 | 3.84 |
XL50-150 | 50 | 150 | 3000 | 5 | 4.54 |
XL50-200 | 50 | 200 | 3000 | 5 | 5.25 |
XL50-300 | 50 | 300 | 3000 | 5 | 6.65 |
XL50-400 | 50 | 400 | 3000 | 5 | 8.06 |
XL50-450 | 50 | 450 | 3000 | 5 | 8.76 |
XL50-500 | 50 | 500 | 3000 | 5 | 9.47 |
XL50-600 | 50 | 600 | 3000 | 5 | 10.88 |
Other Available Dimension
Height: 25mm/ 75mm/ 100mm/ 125mm/ 150mm
Width: 50mm~900mm Length: 300mm~3000mm Diameter: 3.0mm~6.0mm
 |  |
 |  |
