Steel Cementitious Infill Raised Access Floor

Snap-On Stringer Raised Access Floor System

Date:2015-11-20 09:49:51  Visit:

Snap-On Stringer Raised Access Floor System

Product Brief :

1. Antistatic, high dimensional precision, fireproof, high load capacity, flatness and shockproof

2. Elegant appearance for various top tiles like HPL, PVC, ceramic, marble, granite, wood floor

3. Agreeable solution to ground air conditioning system

4. Recyclable, convenient removing, cost saving, long performance life

5. Adjustable height of pedestal, stringer connect, assembly agility, large wire and good exchangeability

6. Panel size 600*600 and 24’*24’ available


Product Type :

Details

Characteristics


1. Antistatic, high dimensional precision, fireproof, high load capacity, flatness and shockproof

2. Elegant appearance for various top tiles like HPL, PVC, ceramic, marble, granite, wood floor

3. Agreeable solution to ground air conditioning system

4. Recyclable, convenient removing, cost saving, long performance life

5. Adjustable height of pedestal, stringer connect, assembly agility, large wire and good exchangeability

6. Panel size 600*600 and 24’*24’ available


Structure


1.panel-Cementitious   infill welded die casing steel sheel, wildly accept many kind of top   tiles such as HPL, PVC, ceramic, granite, marble tiles or other tiles as   you like
 2.pedestal-cross top with steel structure ,height could be 80mm--1500mm
 3.stringer-"U"   type steel stringer, with snap on cross top pedestal stucture, and a   hook on the head easy connect and installation.

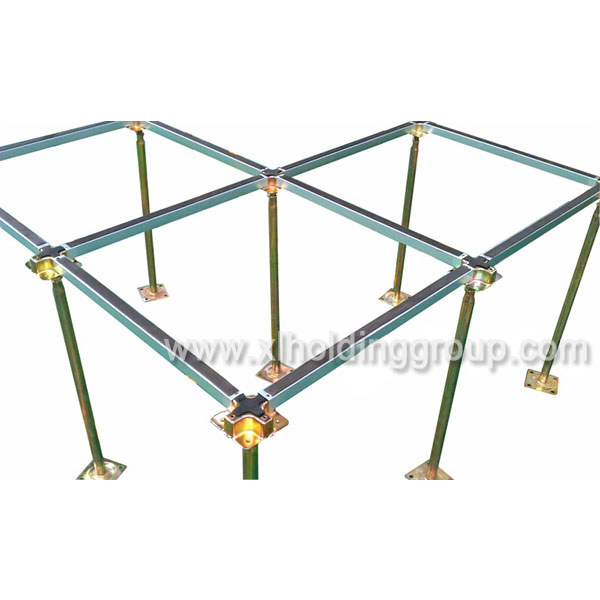

system

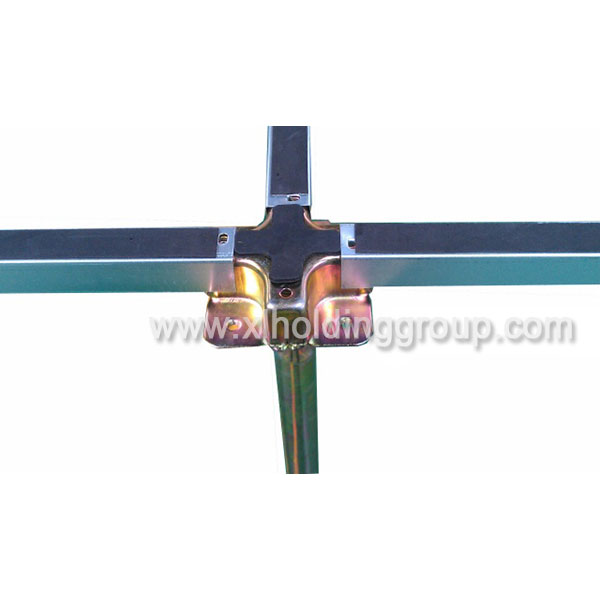

cross head pedestal with snap-on stringer



"U" type stringer




Application


Wide range of the application such as computer room,data center, office building or hotel and so on.


Technical Data


InternationalSize(mm)Concentrated loadImpact load(N)


Ultimated load(N)


Uniform  load(N/㎡)Rolling load(N)
LBNKG1010000
FS662600x600x35≥662≥2950≥301≥445≥8850≥1250029462356
FS822600x600x35≥800≥3550≥363≥536≥11250≥1610035602670
FS1000600x600x35≥1000≥4450≥453≥670≥13350≥2300044503560
FS1250600x600x35≥1250≥5560≥567≥780≥16680≥3300055604450
FS1500600x600x35≥1500≥6660≥680≥780≥26690≥4300066705560
FS2000600x600x35≥2000≥8880≥906≥890≥31130≥5800088008000

*Fireproof Class A
