Description

This series of fan coil is widely used in airconditioning places with multiple rooms in industrial and residentialsuch as hotels,restaurants,

factories,hospitals,markets,exhibition halls,and office buildings,etc.,to meet the demands for cooling,drying and heating,etc.

Structure

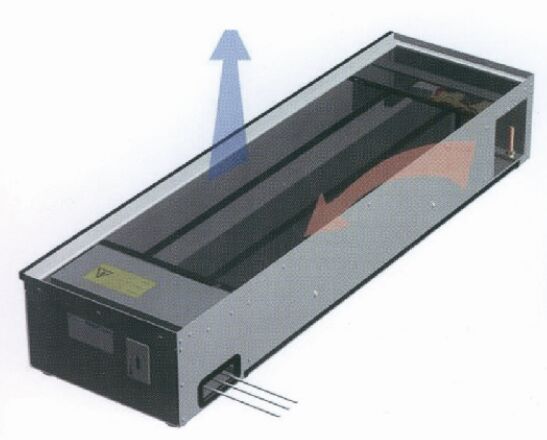

FH-UFC series of groud type fan sets adopt double or tetradic control coil,which cool or heat the indoor air and get the air back into indoor.

The terminal unit is composed of the shell,radial impeller,multi-speed motor,coiler(heat transfer) and integral aluminum grille,etc.

Unit component

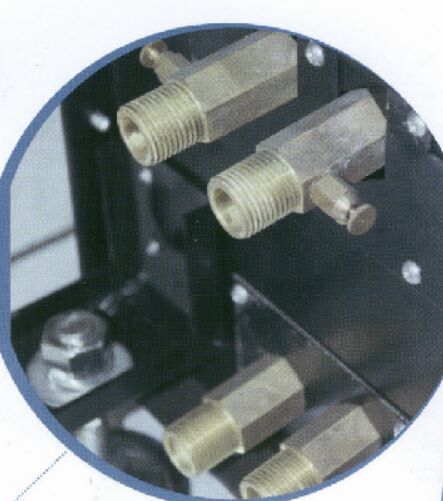

The water inlet and outlet are at the two front sides of the unit.Connection hole is at right and the connection terminal is at the right of fans.

Features

Upper air transfer structure,easy to install.

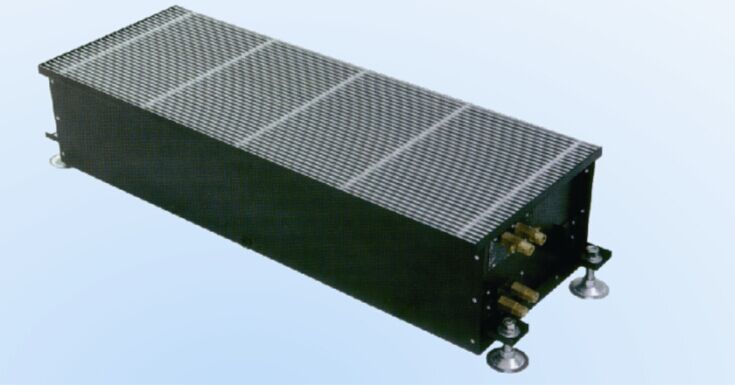

Integral loading aluminum grille,finished by oxidation treatment,nice in appearance and good at wear-resisting and load-bearing.

Efficient in heat transfer,the hear exchanger is composed with cooper pipe and efficient aluminum fin.

The motor used non-mantenance bearings,with new type radial impeller,and it maked little noise.

Condensate water tray can be chosen when coiler is working.

Double or tetradic control coil can be exchanged easily.It can be used in either cooling or heating places.

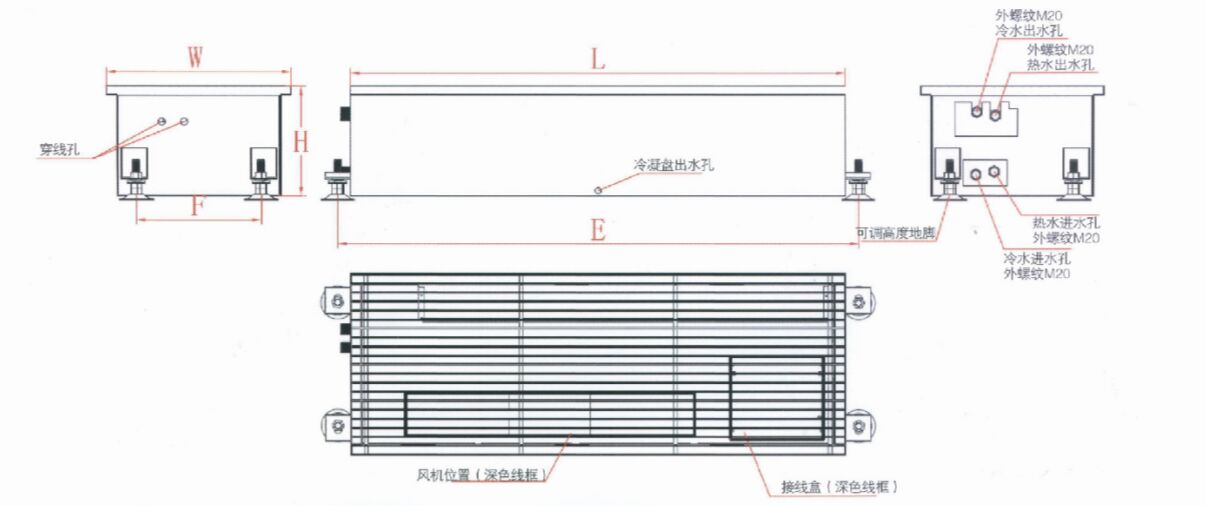

Unit Size list
