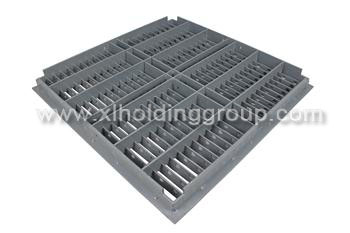

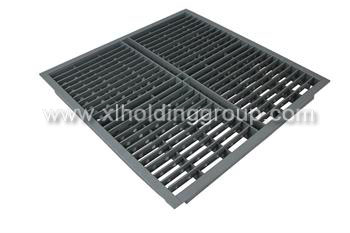

65% Ventilation Steel Air-flow Raised Floor
65% Ventilation Steel Air-flow Raised Floor
1.With wildly brand top tiles, such as PVC, HPL
2.Adjustable height for pedestal, assembly agility, large wire
3.High recycled, convenient removing, saving cost
4.Prevent static validly, fireproof, dustproof
Details
Material
Full steel, surface punched panel which is SPCCID hard steel of Shanghai Bao steel, manual welding for the bottom square tube, origination domestic. Imported paint, conductive rim, pedestal, stringer are pressured forming with steel, lead screw could adjust height.
Characteristics
1.Prevent static validly; fireproof, dustproof;
2.Manual welding, high mechanical strength, strong bearing capacity, good shock-resistance;
3.Except for other function, possess ventilation function;
4.16%~65% ventilation rate, satisfies different environmental requirements on purge;
5.Also called air-flow raised floor,ventilation raised floor,perforated raised floor.
Range of application
All manner of computer room, network service room monitor control center, electronic workshop, clean room, dauntlessness chamber etc and occasions which require on antistatic and air conditioning.
|
|
Technical Specification
International | Size(mm) | Fire Performance | Concentrated load | Impact load (N) | Ultimated load (N) | Uniform Load (N/m2) | Rolling load(N) | |||
LB | N | KG | 10 times | 100000 times | ||||||
FS1000 | 600x600 | A | ≥100 | ≥4550 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
FS1250 | 600x600 | A | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥16680 | ≥33000 | 5560 | 4450 |
FS1500 | 600x600 | A | ≥1500 | ≥6660 | ≥680 | ≥1005 | ≥19980 | ≥34500 | 6675 | 5340 |
Size :600*600mm
Thickness: 50mm
Material : all steel
Note: suitable for 600*600*35mm steel raised floor system
