Linoleum Calsium Sunfate Raised Floor
Linoleum Calsium Sunfate Raised Floor
1. Prevent static validly; fireproof, antiskid, soundproof; dustproof,
electromagnetic shielding, environment friendly and innoxious;
2. Strong wearability, non-bubble, non-deguming;
3. Strong support frame, pressurization;
4. High grade, beautiful appearance, easy to fix, convenient for wires;
5. Recyclable, convenient removing, cost saving, long performance life
Details
Description
1. Environment friendly calcium sulphate board
2. Anti-static, High dimensional precision, strong loading ability and shockproof, fireproof
3. Adjustable height for pedestal, assembly agility, large wire, good exchangeability.
4. Outlet mating. Elegant appearance for paving wildly brand top tiles.
5. Being stable performance in humidity temperature

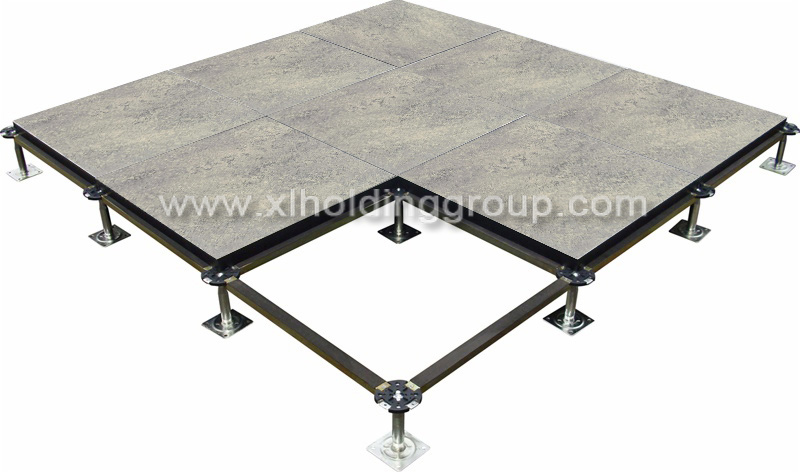

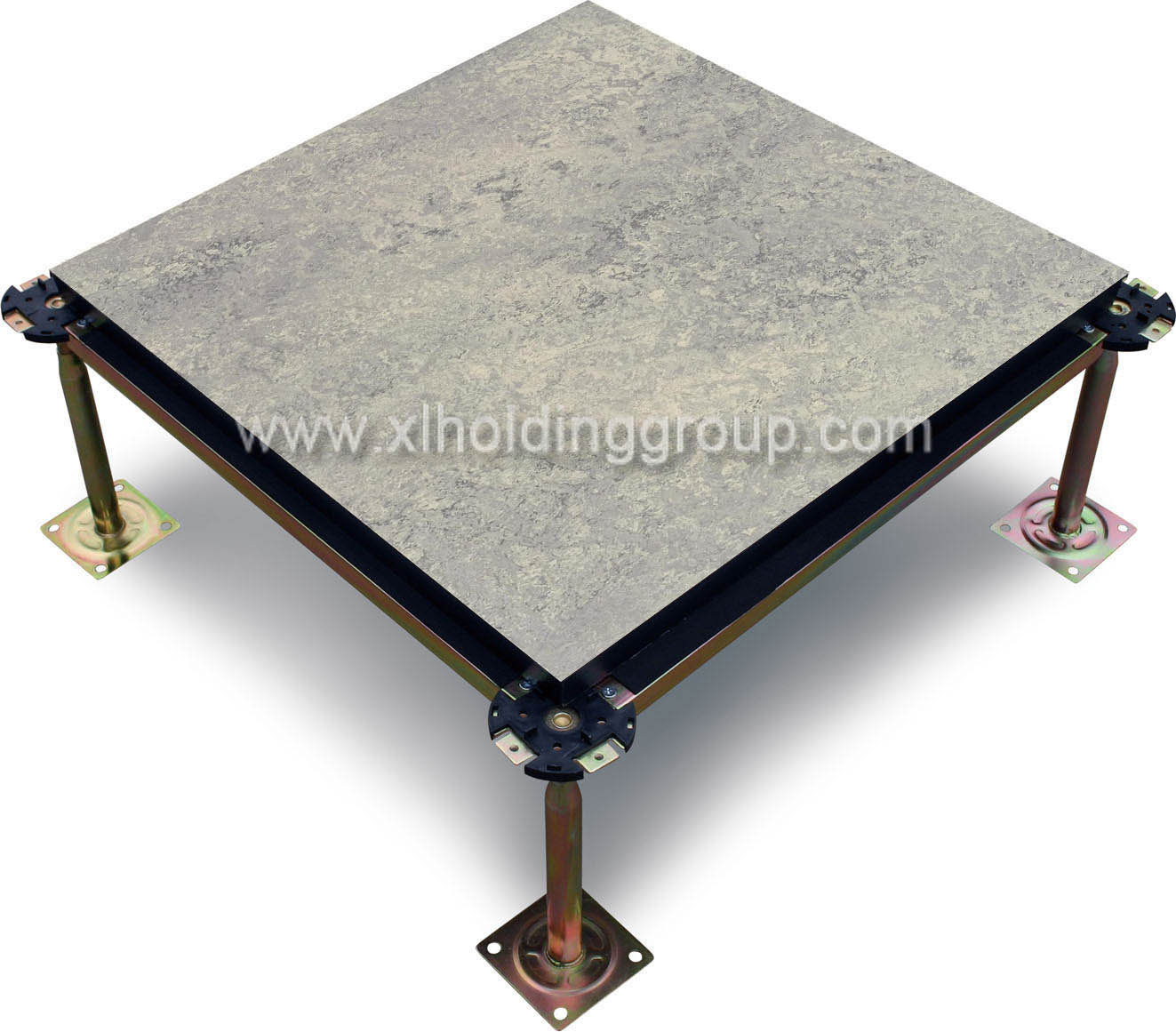

Structure
1. Panel-calcium sulphate board, Linoleum corvered four edges, steel/aluminium on the bottom plate, wildly brand top tiles is Linoleum
2. Accessories-die casting steel structure pedestal plastic gasket on top, height could be
70mm--1500mm, with or without square tube stringer steady connect the system
Application
Wide range of the application such as bank, military, high grade computer room top grade office, and occasions which required high loading capacity
Technical Specification
International Type | SIZE | Concentrated Load | Impact Load (N) | Ultimate Load (N) | Uniform Load (N/M2) | Rolling load (N) | |||
LB | N | KG | 10 times | 10000 times | |||||
FS800 | 600*600 | ≥800 | ≥3350 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
FS1000 | 600*600 | ≥1000 | ≥4550 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
FS1250 | 600*600 | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥16680 | ≥33000 | 5560 | 4450 |
FS1500 | 600*600 | ≥1500 | ≥6675 | ≥670 | ≥1005 | ≥19892 | ≥34500 | 6675 | 5340 |
* panel thickness available from 25mm to 38mm
Standard Pedestal SPEC
FFH(mm) | tube iameter(mm) | adjustment+(mm) | adjustment-(mm) |
≦600 | ф25 | 25 | 25 |
700~900 | ф32 | 25 | 25 |
1000~1500 | ф42 | 25 | 25 |
Other height could be customized.
Standard Stringer SPEC: 535x20x30mm
