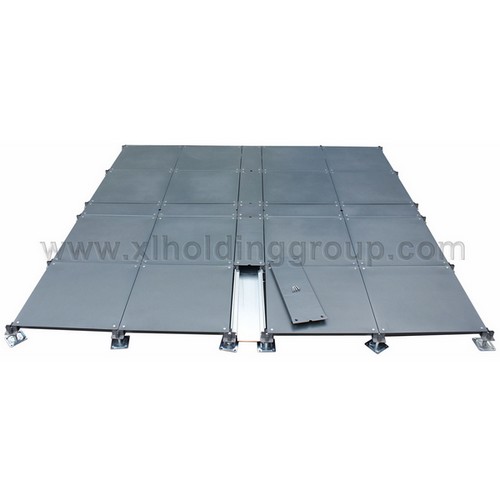

600mm Trunking Bare Steel Raised Access Floor System
600mm Trunking Bare Steel Raised Access Floor System

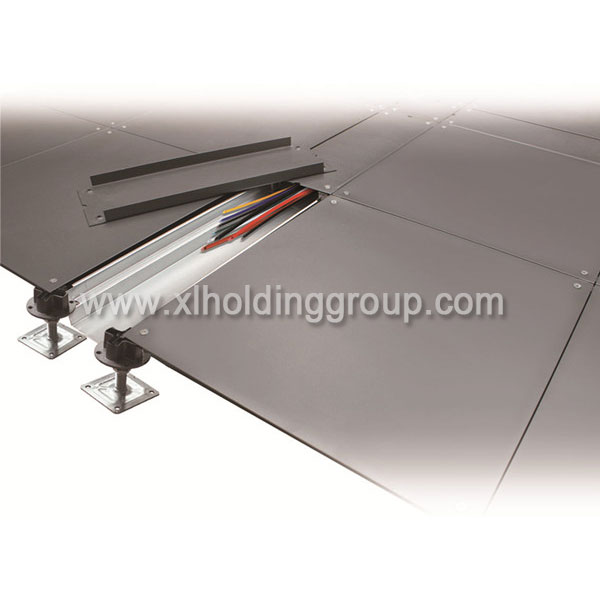

Flexible trunks for wires and cables.
·High recycled, convenient removing saving cost.
·Long performance life.
5A class office building, computer room and occasions which require
overhead and large wires. Even eligible for remaking surface for
the wires in old office building.
Details
Characteristics
1. Easy for relocating cable management.
2. Convenient for connecting wire at any point without cutting floor.
3. Suitable for all kinds of plug socket terminals.
4. Trunkings can be applied at any units according to the volume of cable and wire.

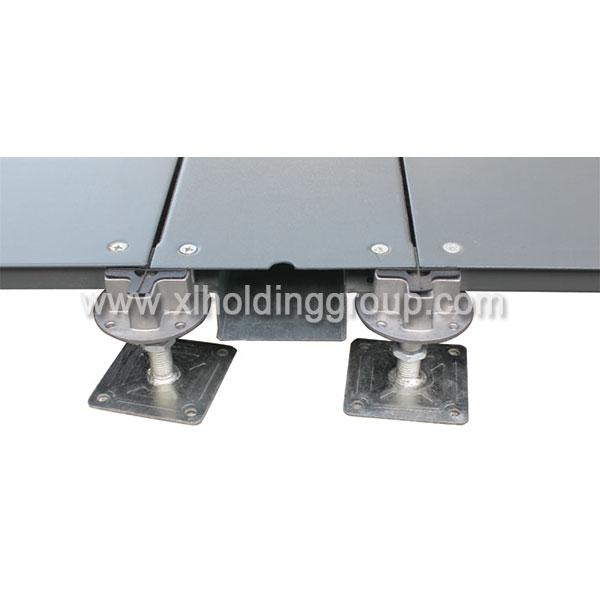

5. Main components: panel, trunk over plate, corner cover plate.
6. Optional accessories: electrical outlet, trunk bottom plate, corner bottom plate, outlet.
7. Available height: 60mm--300mm.
Application of Products
5A class office building, computer room and occasions which require overhead and large wires.
Even eligible for remaking surface for the wires in old office building.
Technical Specification
International | Size(mm) | Fire performance | Concentrated load | Impact load (N) | Ultimate load (N) | Uniform Load (N/㎡) | N Rolling load | |||
LB | N | Kg | 10 Times | 10000 Times | ||||||
FS440 | 600*600*34 | A | ≥440 | ≥1960 | ≥200 | ≥295 | ≥5880 | ≥9720 | 1958 | 1566 |
FS662 | 600*600*34 | A | ≥662 | ≥2950 | ≥301 | ≥445 | ≥8850 | ≥12500 | 2946 | 2356 |
FS800 | 600*600*34 | A | ≥800 | ≥3560 | ≥363 | ≥536 | ≥10680 | ≥16100 | 3560 | 2670 |
FS1000 | 600*600*34 | A | ≥1000 | ≥4450 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
FS1250 | 600*600*34 | A | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥16680 | ≥33000 | 5560 | 4450 |
FS1500 | 600*600*34 | A | ≥1500 | ≥6660 | ≥680 | ≥1005 | ≥19980 | ≥34500 | 6675 | 5340 |
