XLOA network raised floor
Details
Introduction of Products

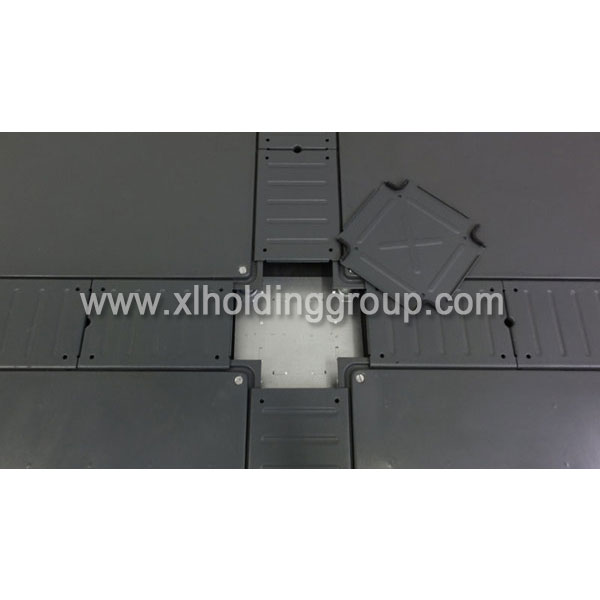

·Main components: panel, trunk cover plate, corner cover plate, corner bottom plate.
·Optional accessories: Electrical outlet,bottom trunk, outlet.
·The adjustment of the floor 35mm--150mm, the best height is 50mm, save the space of the room.
·Easy for the wiring and cabling, wires and cables put into the trunk and without cut the panel.
Application of Products
5 class office building, the first rate office building, Bank Building, Electricity Control Building, Security Union Plaza ,Telecom Building, Futures Trading Building, Software Design Center, data center and the place demand cabling and wiring. And best for the aging building floor's reform.
Characteristics of Products
Save the room space, the lowest is 35mm, adjustment height 35-150mm
Every cover plate with cable hole, easy wiring.
Cover plate & socket interchange any place.
Specification
| International | Size(mm) | Fire Performance | Concentrated load | Impact load (N) | Ultimated load (N) | Uniform Load (N/m2) | Rolling load(N) | |||
| LB | N | KG | 10 times | 100000 times | ||||||
| FS440 | 500x500x28 | A | ≥440 | ≥1960 | ≥200 | ≥295 | ≥5880 | ≥9272 | 1958 | 1566 |
| FS662 | 500x500x28 | A | ≥662 | ≥2950 | ≥301 | ≥445 | ≥8850 | ≥1250 | 2946 | 2356 |
| FS800 | 500x500x28 | A | ≥800 | ≥3350 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
| FS1000 | 500x500x28 | A | ≥1000 | ≥4550 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
