Wood Core Raised Floor System

Steel Encased Wood Core Raised Access Floor

Date:2014-09-25 16:26:21  Visit:

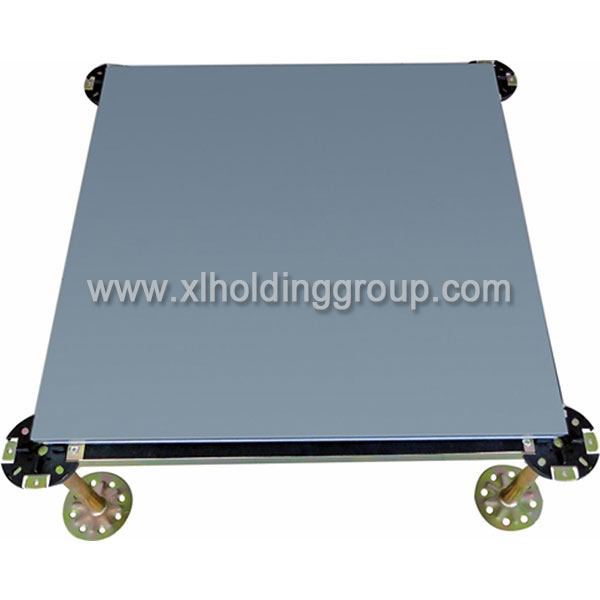

Steel Encased Wood Core Raised Access Floor

Product Brief :

1.Full galvanized steel encased the wood core, very good sealing

2.High dimensional precision, strong loading ability and shockproof

3.Adjustable height for pedestal, assembly agility, large wire

4.light weight, high loading capacity, excellent raised flooring in 21th

5.High recycled,convenient removing,saving cost,long performance life

Product Type : FS662-FS1500

Details


Steel Encased Wood Core Raised Access Floor


Description


1.Full galvanized steel encased the wood core, very good sealing

2.High dimensional precision, strong loading ability and shockproof

3.Adjustable height for pedestal, assembly agility, large wire

4.light weight, high loading capacity, excellent raised flooring in 21th

5.High recycled, convenient removing, saving cost, long performance life

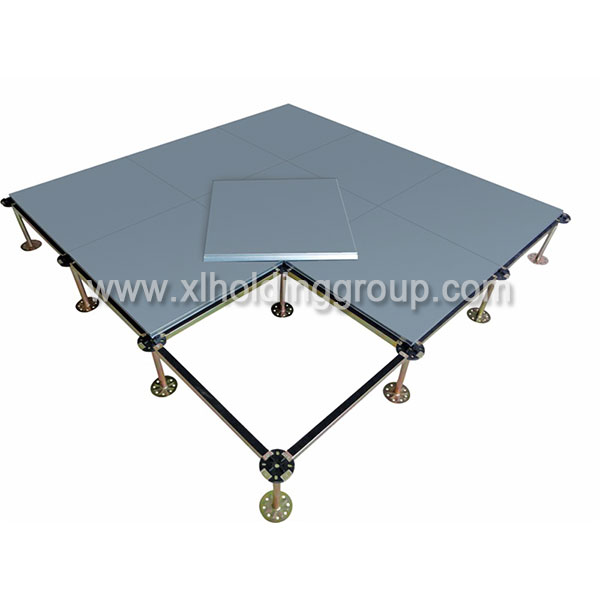

Structure

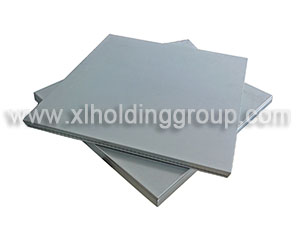

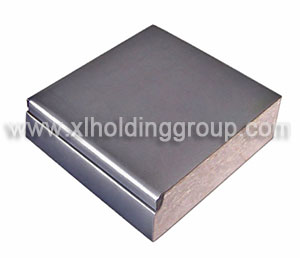

1.panel-Galvanized steel plate encased the wood core in sx faces ,steel sealed edge ,with or without coner lock hole in four corner ,wildly brand top tiles could be carpet ,HPL PVC tiles or other tiles as you like

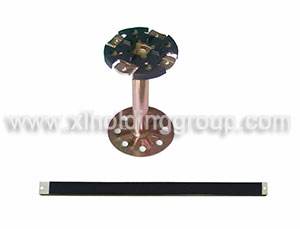

2.Accessories -die casting steel structure pedestal plastic gasket on top ,height could be 70mm ---1500mm , with or without square tube stringer steady connect the system


Application


Wide range of the application all kinds of computerroom, network service engine room, control room, montoring cabin, top grade office.


Type Technology parameter


InternationalSize(mm)
Fire
Performance
Concentrated load
Impact load
(N)
Ultimated load
(N)
Uniform
Load
(N/m2)
Rolling load(N)
LBNKG10 times
100000
times
FS662600x600x32A≥662≥2950≥301≥445≥8850≥1250029462356
FS800600x600x32A≥800
≥3560
≥363
≥536
≥10680
≥16100
3560

2670

FS1000600x600x32A≥1000
≥4450
≥450
≥670
≥13350
≥23000
4450

3560

FS1250600x600x32A≥1250
≥5560
≥567
≥780
≥16680
≥33000
5560

4450

FS1500
600x600x32A≥1500≥6660≥680≥1005≥19980≥3450066755340


Standard Pedestal SPEC


FFH(mm)tube diameter(mm)adjustment +(mm)adjustment -(mm)
≦600
ф25
25
25
700~900
ф32
25
25
1000~1500
ф42
25
25

Other height could be customized.

Standard Stringer SPEC: 535x20x30mm

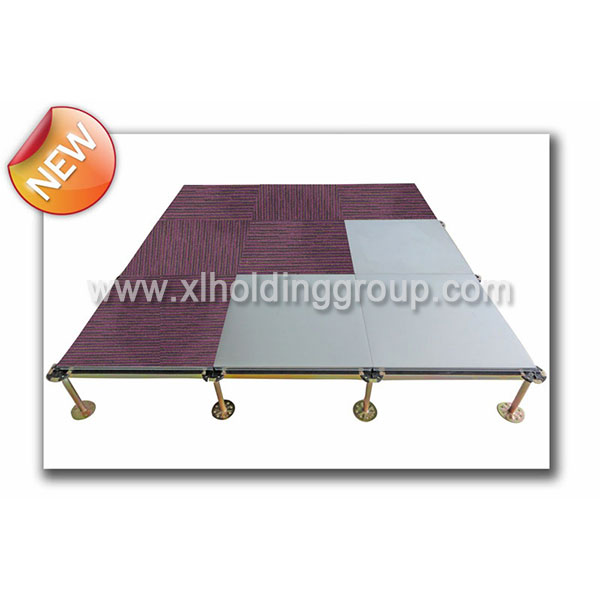

New product:Steel Encased Wood Core Raised Access Floor+magnetic floor
