Wood Core Raised Access Floor System
Wood Core Raised Access Floor System
1.High density particle board,PVC/ABS edge trim, sound proof
2.High dimensional precision, strong loading ability and shockproof
3.Adjustable height for pedestal, assembly agility, large wire
4.Light weight, high loading capacity, excellent raised flooring in 21th
Details

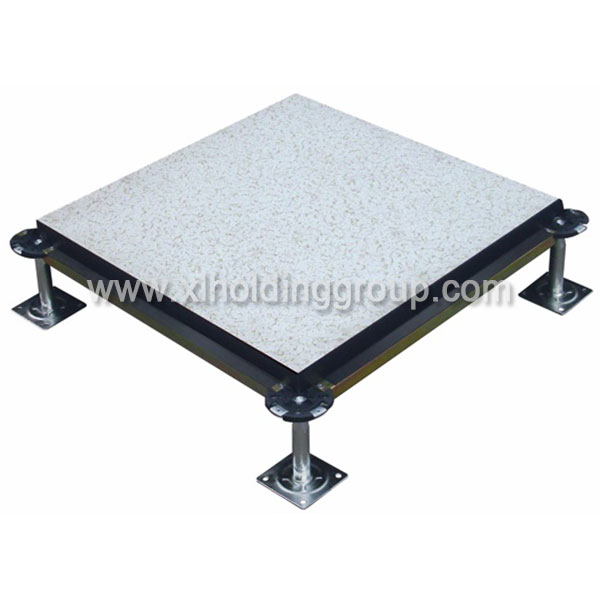

Wood Core Raised Access Floor System
Description
1.High density particle board,PVC/ABS edge trim, sound proof
2.High dimensional precision, strong loading ability and shockproof
3.Adjustable height for pedestal, assembly agility, large wire
4.Light weight, high loading capacity, excellent raised flooring in 21th
|
|
Structure

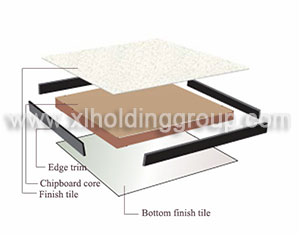

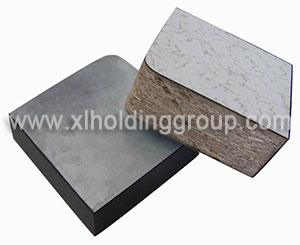

1.Panel- 30/38mm thickness particle board, PVC/ABS corvered four edges, steel/aluminium on the bottom plate, wildly brand top tiles could be carpet, HPL PVC, steel plate, aluminium foil or other tiles as you like

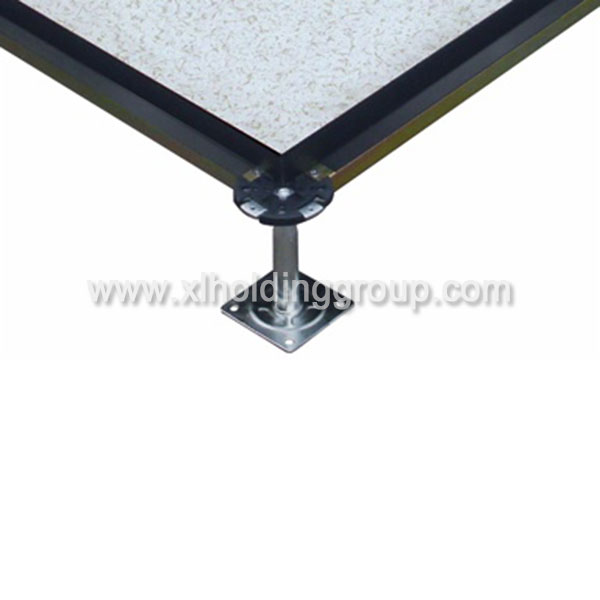

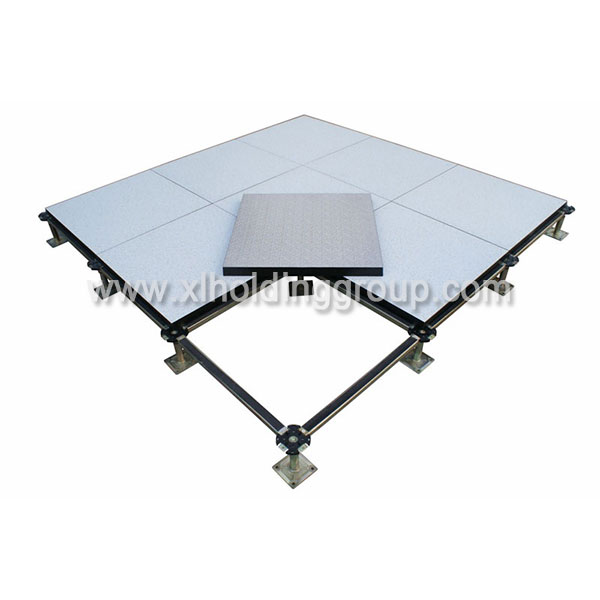

2.Accessories -die casting steel structure pedestal plastic gasket on top, height could be 70mm ---1500mm, with or without square tube stringer steady connect the system
Application
Wide range of the application, all kinds of computerroom, network service engine room, control room, montoring cabin, top grade office Type Technology parameter
Type Technology parameter
| International | Size(mm) | Fire Performance | Concentrated load | Impact load (N) | Ultimated load (N) | Uniform Load (N/m2) | Rolling load(N) | |||
| LB | N | KG | 10 times | 100000 times | ||||||
| FS440 | 600x600x32 | B1 | ≥440 | ≥1960 | ≥200 | ≥295 | ≥5880 | ≥9720 | 1958 | 1566 |
| FS662 | 600x600x40 | B1 | ≥662 | ≥2950 | ≥301 | ≥445 | ≥8850 | ≥12500 | 2946 | 2356 |
| FS800 | 600x600x40 | B1 | ≥800 | ≥3560 | ≥363 | ≥536 | ≥10680 | ≥16100 | 3560 | 2670 |
| FS1000 | 600x600x40 | B1 | ≥1000 | ≥4450 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |

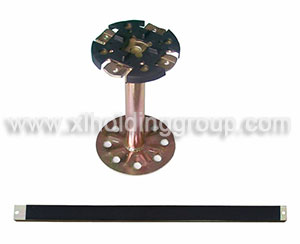

Standard Pedestal SPEC:
| FFH(mm) | tube diameter(mm) | adjustment +(mm) | adjustment -(mm) |
| ≦600 | ф25 | 25 | 25 |
| 700~900 | ф32 | 25 | 25 |
| 1000~1500 | ф42 | 25 | 25 |
Other height could be customized.
Standard Stringer SPEC: 535x20x30mm
