Aluminium Air-Flow Raised Access Floor
Details
Description

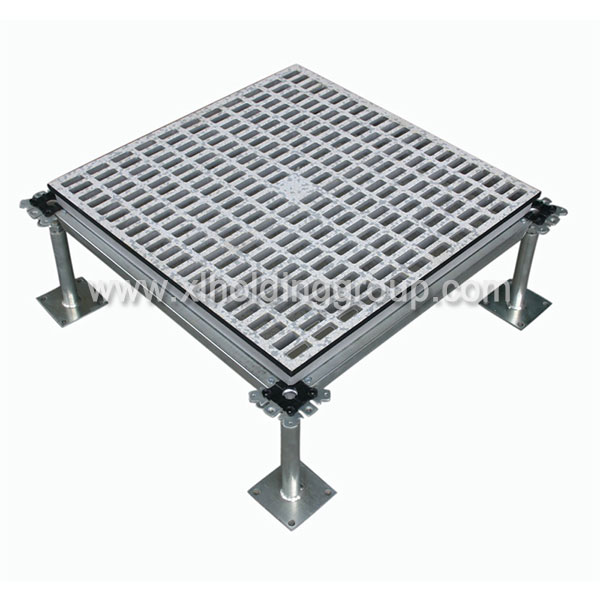

Prefer aluminum as base material, die casting by large oil press. Imported strong glue HPL or PVC. Pedestal, stringer are pressured forming with steel or aluminum, lead screw could adjust height.
Characteristics
1.Prevent static validly; fireproof, dustproof;
2.Manual welding, high mechanical strength, strong bearing capacity, good shock-resistance;
3.Except for other function, possess ventilation function;
4.Various ventilation rate, satisfies different environmental requirements on purge;
5.Also called air-flow raised floor,ventilation raised floor,perforated raised floor.
Application

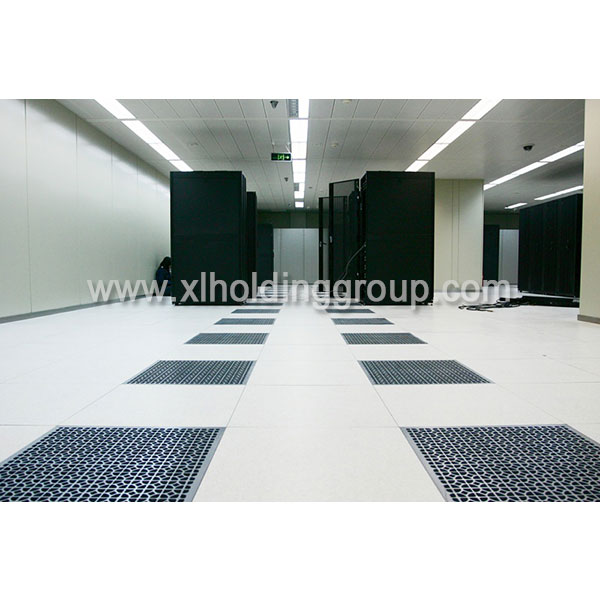

All manner of computer room, network service room monitor control center, electronic workshop, clean room, dauntlessness chamber etc and occasions which require on antistatic and air conditioning.
Technical Specification
| International | Size(mm) | Fire Performance | Concentrated load | Impact load (N) | Ultimated load (N) | Uniform Load (N/m2) | Rolling load(N) | |||
| LB | N | KG | 10 times | 100000 times | ||||||
| FS1000 | 600x600 | A | ≥1000 | ≥4450 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
| FS1250 | 600x600 | A | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥16680 | ≥33000 | 5560 | 4450 |
| FS1500 | 600x600 | A | ≥1500 | ≥6660 | ≥680 | ≥1005 | ≥19980 | ≥34500 | 6675 | 5340 |
Size :600*600mm
Thickness: 40/45/50mm
Material : all aluminium
