Aluminum Raised Floor System

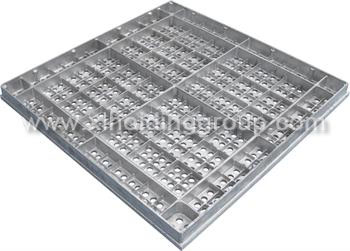

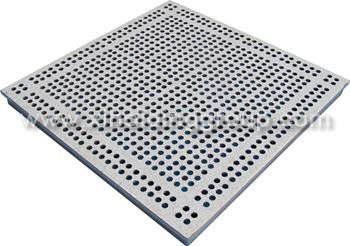

20% Ventilation Aluminium Air-Flow Raised Access Floor

Date:2015-02-11 16:36:43  Visit:

20% Ventilation Aluminium Air-Flow Raised Access Floor

Product Brief :

Prefer aluminum as base material, die casting by large oil press. Imported strong glue HPL or PVC. Pedestal,stringer are pressured forming with steel or aluminum, lead screw could adjust height.

Product Type : 20% Ventilation

Details


Description


Prefer aluminum as base material, die casting by large oil press. Imported strong glue HPL or PVC. Pedestal, stringer are pressured forming with steel or aluminum, lead screw could adjust height.


Characteristics


1.Prevent static validly, fireproof, dustproof;
2.High mechanical strength, strong bearing capacity, good shock-resistance;
3.Except for other function, possess ventilation function;
4.Various ventilation rate, satisfies different environmental requirements on purge;

5.Also called air-flow raised floor,ventilation raised floor,perforated raised floor.


Application


All manner of computer room, network service room monitor control center, electronic workshop, clean room, dauntlessness chamber etc and occasions which require on antistatic and air conditioning.


Technical Specification


InternationalSize(mm)Fire PerformanceConcentrated loadImpact load (N)Ultimated load (N)Uniform  Load (N/m2)Rolling load(N)
LBNKG10 times100000  times
FS1000600x600A≥1000≥4450≥450≥670≥13350≥2300044503560
FS1250600x600A≥1250≥5560≥567≥780≥16680≥3300055604450
FS1500600x600A≥1500≥6660≥680≥1005≥19980≥3450066755340



Size :600*600mm

Thickness: 40/45/50mm

Material : all aluminium
