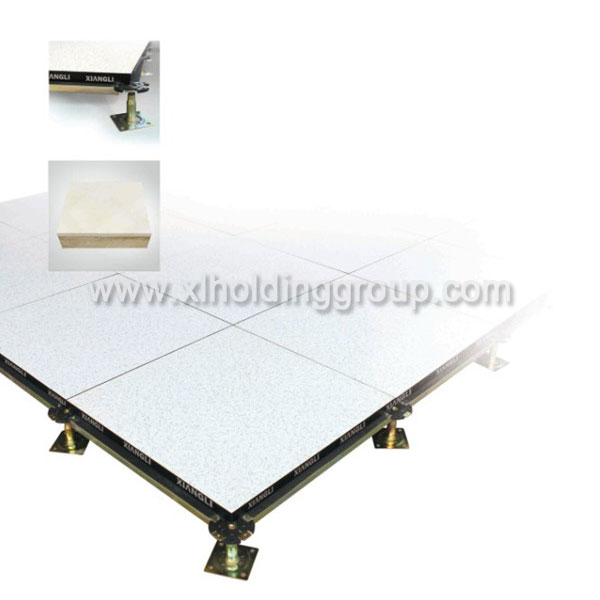

Calcium sulphate raised access floor(finished type)
Calcium sulphate raised access floor(finished type)
Environment friendly calcium sulphate board.
Antistatic, high dimensional precision, strong loading ability and shockproof, fireproof.
Adjustable height for pedestal, assembly agility, large wire, good exchangeability.
Outlet mating, elegant appearance for paving widely brand top tiles.
Being stable performance in humidity & temperature.
Details
Introduction of Products
Calcium sulphate raised floor panel in made of the environment friendly plant's fibre as the reinforcement material, and then solidify the calcium sulphate crystals, and after the pulse pressing process done. has become the newest one of raised acess floor, because the good furthers in environment friendly, fireproof, high loading capacity and flatness and so on.
XL have researched the calcium sulphate for many years, the loading capacity of this floor from XL better than any other suppliers, and the purity of calcium sulphate in the panel more than 85% which has reached the international standard.
XL calcium sulphate raised floor is made of featured natural CaSO4 1/2H2O and unbleached sulfate coniferous wood pulp (High strength kraft paper) through high voltage pulse. The weight of base material moisture content can be controlled under 5% by scientific and resonable electronic weight method.It makes XL calcium sulphate raised floor be the top one in the raised floor industry from the aspect of industry technology, environmental property and stability. The calcium sulphate raised floor will be the new raised floor base material.
Fire protection, thermal insulation, non-combustible
Because of its material chared, the calcium sulphate can be fire protection, thermal insulation performance and non-combustible, and does not produce harmful gases. It will be the new raised floor base material.
High physical and mechanical properties
The calcium sulphate floor's substrate is more than 85%, has reached international standards, the products have passed CE certification.
Soundproofing
The calcium sulphate mixed with the fibre can prevent the vibration, which can reduce the vibration of the building structures from the shaking source, lessen the voice of vibration to get the soundproofing.
The Advantages of Calcium Sulphate Raised Access Floor
Concentrated load, Square point load
XL's production of calcium sulphate raised floor, side load strength and the center point load well, an effective solution should be uneven force caused by the phenomenon in the floor while Alice.
Environmental protection material
XL company committed to sustainable recovery up to 85%, and long product life. The calcium sulfate Xinban adopted by the Company for the 100% recyclable materials derived from
Waterproof
Calcium sulfate to the Carrier board plate core, veneer materials and adhesive glue, integrally formed with excellent waterproof performance, whether it is instantly soaked or wet slowly after treatment will not form a board deformation and pastesurface and auxiliary materials such as wrinkling unglued.
Content | XL Product | Domestic Similar Product | ||
1 | Major Materials | Raw Material | Featured natural CaSO4 1/2H2O Advantages：green environmental, high purity,super intensity and tenacity Disadvantages：high cost | Normal gypsum powder & cement, coal ash Advantages：low cost Disadvantages：low purity,bad intensity and tenacity, not environmental-friendly |
Paper Pulp | Not bleached sulfate coniferous wood pulp (High strength kraft paper) Advantages：original wood pulp without bleaching，green environmental，no impurity and air odor,long fiber, excellent intensity Disadvantages：high cost | Waste paper,yellow board paper,recycled pulp Advantages：low cost Disadvantages：small fiber, many impurity，smelly，non-environmental，low intensity | ||
Glue | Shanghai Yechuan Tai Abang Glue Advantages：environmental, no pollution，paste solidly Disadvantages : cost increasing | Common resin glue Advantages：low cost Disadvantages：not environmental ，weak paste ability | ||
Galvanized Steel | “Shou Gang”Galvanized Steel Advantages：high rigidity & flatness，good resistance to bending，wonderful anti-corrosion performance Disadvantages : cost increasing | Galvanized Steel from small workshop Advantages：low cost Disadvantages：many impurity，bad stiffness，generic resistance to bending ，common anti-corrosion performance | ||
2 | Manufacturing Techniques | Base Material | Store different materials in different tanks，weigh accurately different rates of raw material each floor needs according to the automatical electronic weighing system, stir the powder in advance before ultimate small stir Advantages：even texture，stable quality，small density error Disadvantages：large investment of equipment in one time | Weigh the raw materials artificially ，stir the mixed directly Advantages：simple progress，convenient operation Disadvantages：each floor has heterogeneous disposition, or high element or low，large error of density |
3 | Critical Production Equipment | Drying oven | OLYMSPAN Co., Ltd(Changzhou) has the most advanced energy-saving temperature-controlling drying oven, which can dry scientifically according to different product set and different temperature -controlling curve Advantages：use high-density gypsum base drying curve reasonably and scientifically, dry fast on the base of energy-saving, also assure the best quality Disadvantages：it will take the oven operator long time to monitor and adjust strictly the supply air rate, speed of cool, temperature and so on according to the standard of temperature-controlling | Home-made traditional old drying tunnel and kiln Advantages：low equipment price and preserve cost Disadvantages：it is hard to control the temperature in constant one, large temperature difference above 10℃ will result in drying unevenly. Moreover, too high temperature in tunnel will dry the material overly to decrease the moisture content, so the base material will dust and easy to rupture as the lower intensity: or the temperature is too low, the base material cann’t be dried even, high water rate, so galvanized steel can’t be glued with base material and then lead to uncoating, foaming and surface rusting problems |

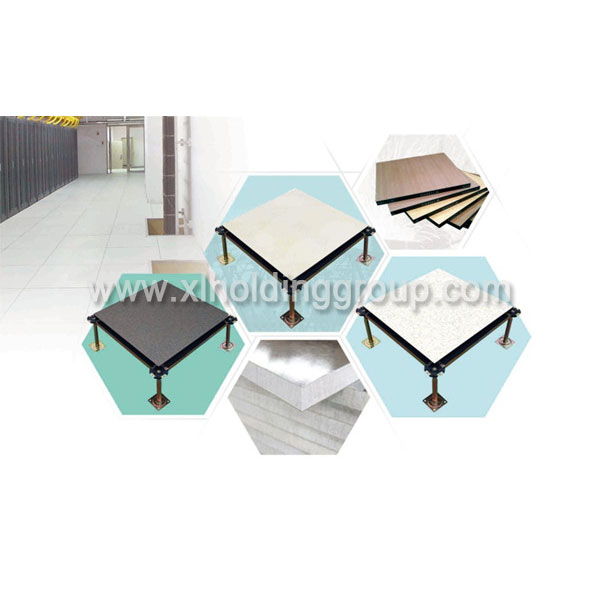

Tile Finished Calcium Sulphate Raised Access Floor
Characteristics
Environment friendly calcium sulphate board.
Anti-static ,high dimensional precision, strong loading ability and shockproof, fireproof.
Adjustable height for pedestal, assembly agility, large wire, good exchangeability.
Outlet mating. Elegant appearance for paving wildly brand top.
Being stable performance in humidity temperature.
Technical Specification
International Type | SIZE | Concentrated Load | Impact Load (N) | Ultimate Load (N) | Uniform Load (N/M2) | Rolling load (N) | |||
LB | N | KG | 10 times | 10000 times | |||||
FS800 | 600*600 | ≥800 | ≥3350 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
FS1000 | 600*600 | ≥1000 | ≥4550 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
FS1250 | 600*600 | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥16680 | ≥33000 | 5560 | 4450 |
FS1500 | 600*600 | ≥1500 | ≥6675 | ≥670 | ≥1005 | ≥19892 | ≥34500 | 6675 | 5340 |
FS2000 | 600*600 | ≥2000 | ≥8900 | ≥906 | ≥1340 | ≥26700 | ≥46000 | 8900 | 7120 |
*Panel thickness available from 25mm to 38mm
