Antistatic Raised Floor

Wood Core Raised Access Floor

Date:2014-09-26 08:54:18  Visit:

Wood Core Raised Access Floor

Product Brief :

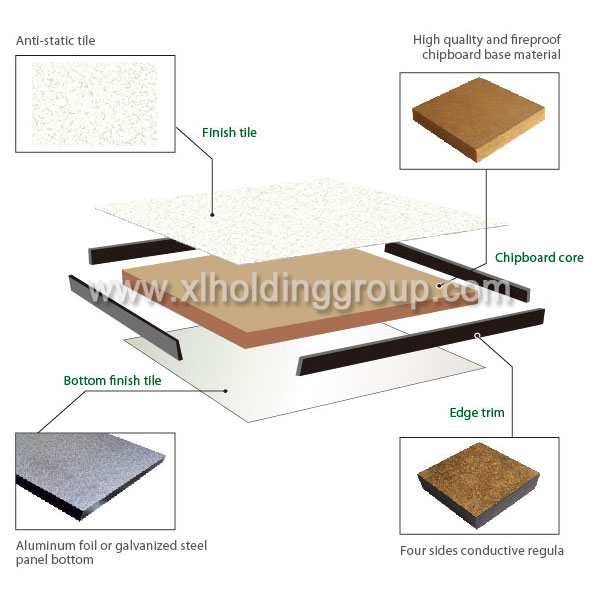

Advanced technology, imported high quality chipboard base material or MDF base material.

Tile could be HPL or PVC ceramics ( granite ).

Four sides: conductive regula.

Bottom panel: aluminum foil or galvanized steel.

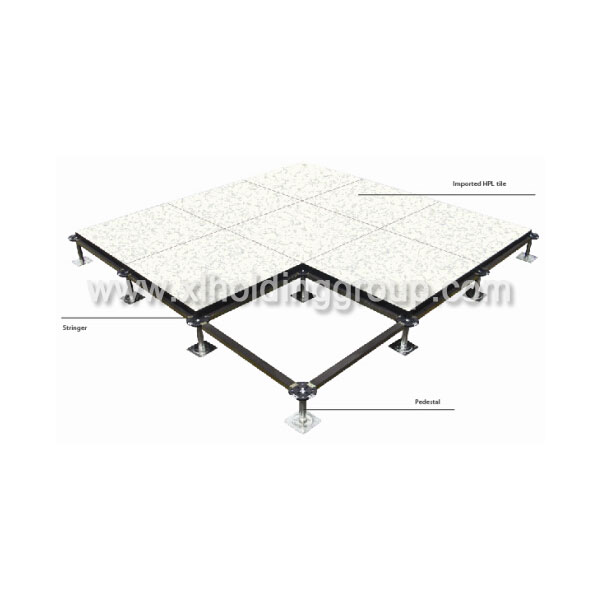

Stringer: pressure forming and conductive gum cover.

Lead screw could adjust height.

Product Type : FS440 ~ FS1250

Details

Wood Core Raised Access Floor


Introduction of Products

Advanced technology, imported high quality chipboard base material or MDF base material.

Tile could be HPL or PVC ceramics ( granite ).

Four sides: conductive regula.

Bottom panel: aluminum foil or galvanized steel.

Stringer: pressure forming and conductive gum cover.

Lead screw could adjust height.


Characteristics
1. Prevent static validly; fireproof class B2; antiskid, soundproof, dust proof, antisoil.
2. Strong wearability, non-bubble, no degumming .
3. Strong design ability, pressurization;
4. Appearance is beautiful;
5. Light weight, easy to fix, convenient for wires.


Technical Specification

International

Type

Size (mm)

Concentrated Load

Impact Load

(N)

Ultimate Load

(N)

Uniform Load

(N/M2)

Rolling load (N)

LB

N

KG

10 times

10000 times

FS440

600x600x32

≥440

≥1960

≥200

≥295

≥5880

≥9720

1958

1566

FS662

600x600x40

≥662

≥2950

≥301

≥445

≥8850

≥12500

2946

2356

FS800

600x600x40

≥800

≥3560

≥363

≥536

≥11250

≥16100

3560

2670

FS1000

600x600x40

≥1000

≥4550

≥450

≥670

≥13350

≥23000

4450

3560

FS1250

600x600x40

≥1250

≥5560

≥567

≥780

≥16680

≥33000

5560

4450
