Cementitious Inﬁll Steel Raised Access Floor System(Customisde Type 610mm)

Date：2014-09-26 08:58:06　　Visit：

Cementitious Inﬁll Steel Raised Access Floor System(Customisde Type 610mm)

Product Brief :

1.Prevent static validly; flame retardant, dustproof, antiskid, antisoil,

resistance to chemical attack.

2.Imported glue, strong wearability, non-bubble, non-degumming;

painted steel body to prevent static, soft light, wearproof, artistic.

3.High dimensional precision, newly patent design,

super strength loading, pressurization.

4.Fix conveniently, assembly agility, bottom space could be used for

air conditioning.

Product Type : Customisde Type 610mm

inquiry 点击下载

Details

Cementitious Inﬁll Steel Raised Access Floor System(Customisde Type 610mm)

Characteristics

1.Prevent static validly; flame retardant, dustproof, antiskid, antisoil, resistance to chemical attack.

2.Imported glue, strong wearability, non-bubble, non-degumming; painted steel body to prevent static, soft light, wearproof, artistic.

3.High dimensional precision, newly patent design, super strength loading, pressurization.

4.Fix conveniently, assembly agility, bottom space could be used for air conditioning.

HPL, PVC , Ceramic, granite could be the surface of steel raised floor or pave dirdctly to the concrete floor.

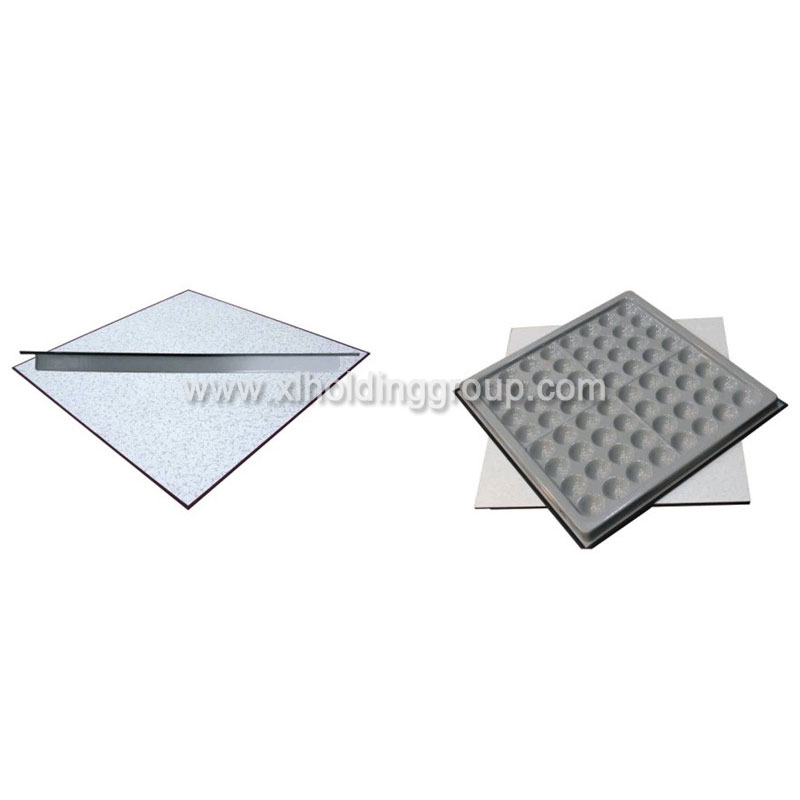

Steel raised floor of XL Holding Group, owe to wider edge with rib, "#"back strengthening rib and salient point structure, more loading than national standards. Reshaping many times and high flatness which is less than 0.4mm and be superior to similar factories 10-20%.

Technical Specification

International Type	Size (mm)	Concentrated Load			Impact Load (N)	Ultimate Load (N)	Uniform Load (N/M2)	Rolling load (N)
International Type	Size (mm)	LB	N	KG	Impact Load (N)	Ultimate Load (N)	Uniform Load (N/M2)	10 times	10000 times
FS662	610x610x35	≥662	≥2950	≥301	≥445	≥8850	≥1250	2946	2356
FS800	610x610x35	≥800	≥3350	≥363	≥536	≥11250	≥16100	3560	2670
FS1000	610x610x35	≥1000	≥4550	≥450	≥670	≥13350	≥23000	4450	3560
FS1250	610x610x35	≥1250	≥5560	≥567	≥780	≥16680	≥33000	5560	4450
FS1500	610x610x35	≥1500	≥6675	≥670	≥1005	≥19892	≥34500	6675	5340
FS2000	610x610x35	≥2000	≥8900	≥906	≥1340	≥26700	≥46000	8900	7120
