XL-100 Height Series
XL-100 Height Series

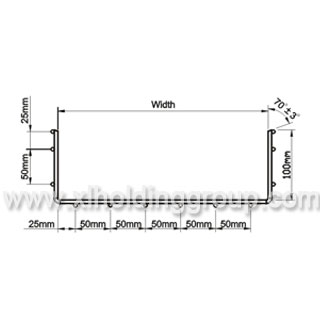

H:Height=100mm
W:Width=from 100mm to 1000mm
L:Length=from300 to 3000mm
D:Diameter=from 3.5mm to 6.0mm
F:Surface finishing:
EZ:(Electro Zinc Plated ≥12μm)
HDG:(Hot Dipped Galvanized ≥60μm)
PC:(Powder Coated 60~100μm)
SS304(Acid washing)
SS316(Acid washing)
SS316L(Acid washing)
Details

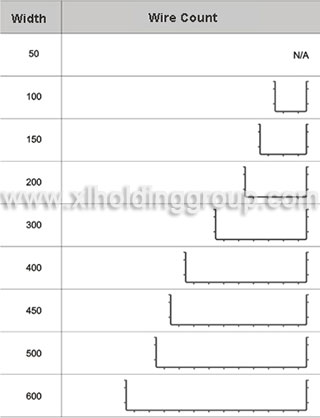

Item | Height(mm) | Width(mm) | Length(mm) | Dia(mm) | Weight(KG) |
XL100-100 | 100 | 100 | 3000 | 5 | 5.25 |
XL100-150 | 100 | 150 | 3000 | 5 | 5.95 |
XL100-200 | 100 | 200 | 3000 | 5 | 6.65 |
XL100-300 | 100 | 300 | 3000 | 5 | 8.06 |
XL100-400 | 100 | 400 | 3000 | 5 | 9.47 |
XL100-450 | 100 | 450 | 3000 | 5 | 10.17 |
XL100-500 | 100 | 500 | 3000 | 5 | 10.88 |
XL100-600 | 100 | 600 | 3000 | 5 | 12.28 |
Description:
H:Height=100mm
W:Width=from 100mm to 1000mm
L:Length=from300 to 3000mm
D:Diameter=from 3.5mm to 6.0mm
F:Surface finishing:
EZ:(Electro Zinc Plated ≥12μm)
HDG:(Hot Dipped Galvanized ≥60μm)
PC:(Powder Coated 60~100μm)
SS304(Acid washing)
SS316(Acid washing)
SS316L(Acid washing)
|
|
 |
