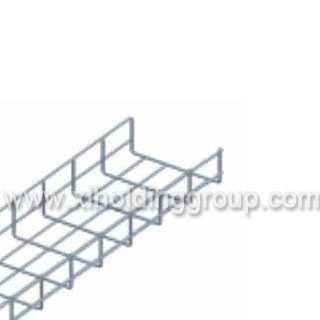

XL-75 Height Series
XL-75 Height Series

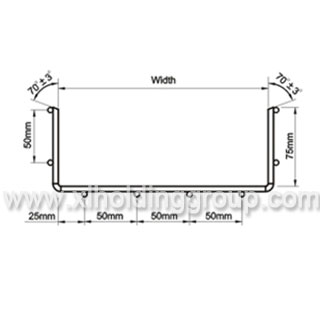

H:Height=75mm
W:Width=from 100mm to 1000mm
L:Length=from300 to 3000mm
D:Diameter=from 3.5mm to 6.0mm
F:Surface finishing:
EZ:(Electro Zinc Plated ≥12μm)
HDG:(Hot Dipped Galvanized ≥60μm)
PC:(Powder Coated 60~100μm)
SS304(Acid washing)
SS316(Acid washing)
SS316L(Acid washing)
Details
Description:
H:Height=75mm
W:Width=from 100mm to 1000mm
L:Length=from300 to 3000mm
D:Diameter=from 3.5mm to 6.0mm
F:Surface finishing:
EZ:(Electro Zinc Plated ≥12μm)
HDG:(Hot Dipped Galvanized ≥60μm)
PC:(Powder Coated 60~100μm)
SS304(Acid washing)
SS316(Acid washing)
SS316L(Acid washing)
Specification:

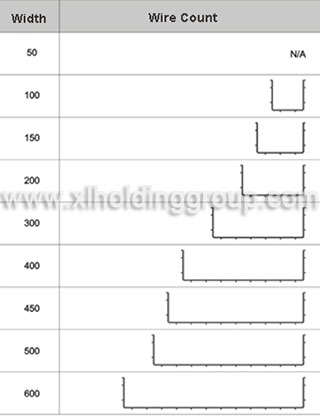

Item | Height(mm) | Width(mm) | Length(mm) | Dia(mm) | Weight(KG) |
XL75-100 | 75 | 100 | 3000 | 5 | 4.08 |
XL75-150 | 75 | 150 | 3000 | 5 | 4.78 |
XL75-200 | 75 | 200 | 3000 | 5 | 5.49 |
XL75-300 | 75 | 300 | 3000 | 5 | 6.89 |
XL75-400 | 75 | 400 | 3000 | 5 | 8.30 |
XL75-450 | 75 | 450 | 3000 | 5 | 9.00 |
XL75-500 | 75 | 500 | 3000 | 5 | 9.71 |
XL75-600 | 75 | 600 | 3000 | 5 | 11.11 |
|
|
