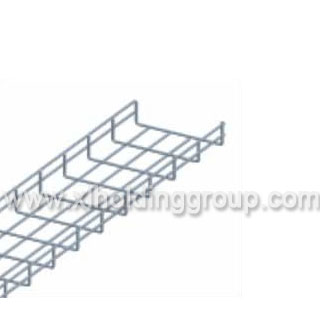

XL-50 Height Series
XL-50 Height Series
H:Height=50mm
W:Width=from 50mm to 1000mm
L:Length=from300 to 3000mm
D:Diameter=from 3.5mm to 6.0mm
F:Surface finishing:
EZ:(Electro Zinc Plated ≥12μm)
HDG:(Hot Dipped Galvanized ≥60μm)
PC:(Powder Coated 60~100μm)
SS304(Acid washing)
SS316(Acid washing)
SS316L(Acid washing)
Details

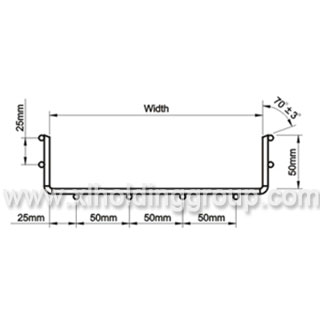

Description:
H:Height=50mm
W:Width=from 50mm to 1000mm
L:Length=from300 to 3000mm
D:Diameter=from 3.5mm to 6.0mm
F:Surface finishing:
EZ:(Electro Zinc Plated ≥12μm)
HDG:(Hot Dipped Galvanized ≥60μm)
PC:(Powder Coated 60~100μm)
SS304(Acid washing)
SS316(Acid washing)
SS316L(Acid washing)
Specification:
Item | Height(mm) | Width(mm) | Length(mm) | Dia(mm) | Weight(KG) |
XL50-50 | 50 | 50 | 3000 | 5 | 3.14 |
XL50-100 | 50 | 100 | 3000 | 5 | 3.84 |
XL50-150 | 50 | 150 | 3000 | 5 | 4.54 |
XL50-200 | 50 | 200 | 3000 | 5 | 5.25 |
XL50-300 | 50 | 300 | 3000 | 5 | 6.65 |
XL50-400 | 50 | 400 | 3000 | 5 | 8.06 |
XL50-450 | 50 | 450 | 3000 | 5 | 8.76 |
XL50-500 | 50 | 500 | 3000 | 5 | 9.47 |
XL50-600 | 50 | 600 | 3000 | 5 | 10.88 |
|
|
