Steel Support Aluminum Raised Access Floor
Steel Support Aluminum Raised Access Floor
1.The best base material of the raised floor, 100% recycled
2.Full aluminium, die casing, top with HPL/ PVC, excellent antistatic
3.Light and high loading capacity, high dimensional precision
4.Adjustable height for pedestal, assembly agility, large wire, good
exchangeability
5.Convenient removing, long performance life
Details

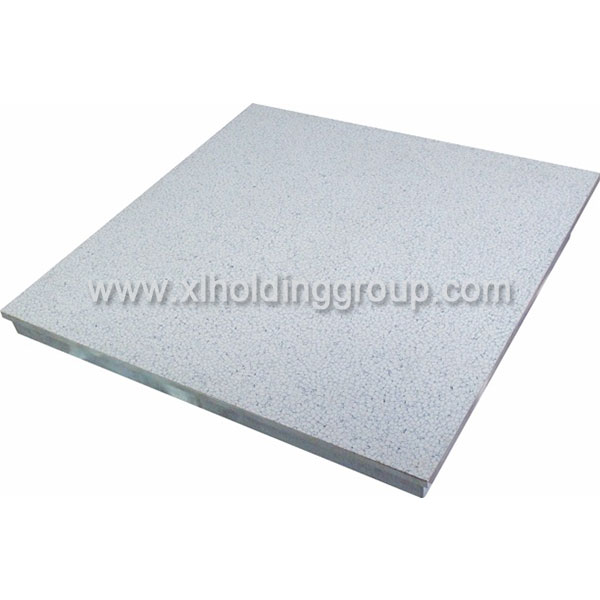

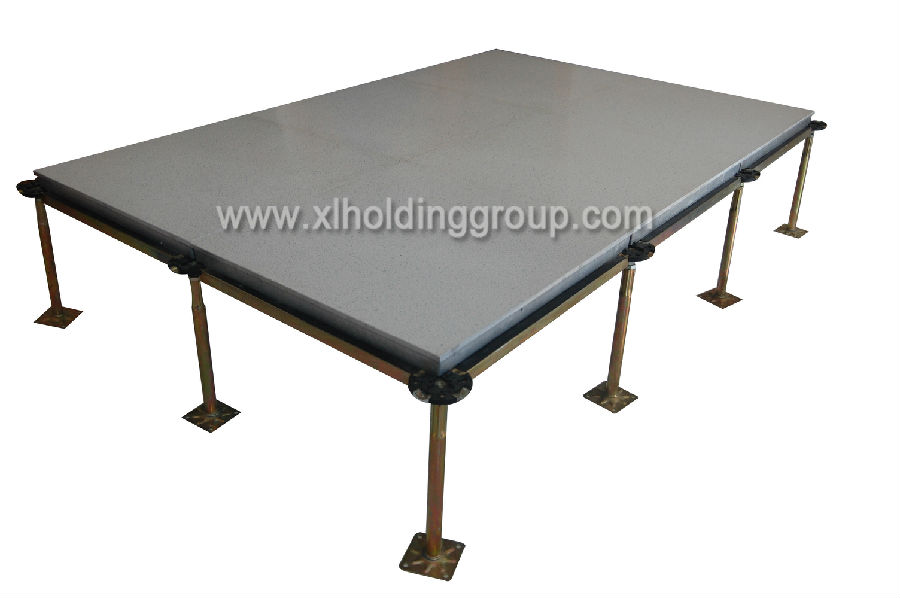

Aluminium Raised Access Floor System
Description
1.The best base material of the raised floor, 100% recycled
2.Full aluminium, die casing, top with HPL/ PVC, excellent antistatic
3.Light and high loading capacity, high dimensional precision
4.Adjustable height for pedestal, assembly agility, large wire, good exchangeability
5.Convenient removing, long performance life
Application

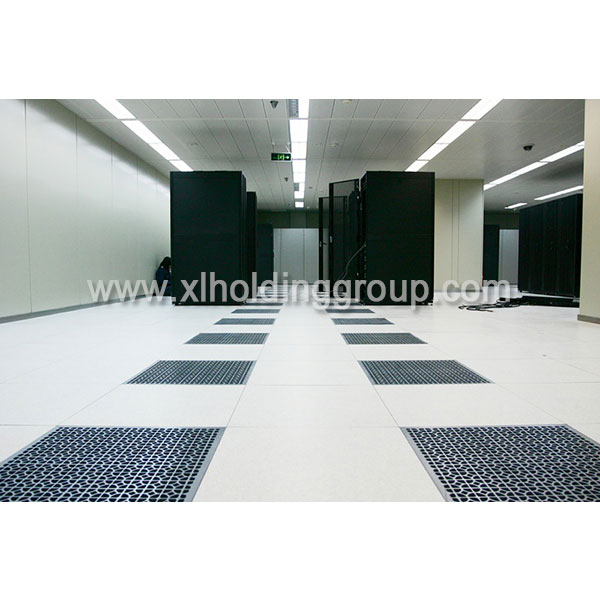

Wide range All manner of computer room, network service room, monitor control center, electronic workshop, clean room, dustlessness chamber etc, and occasions which require on antistatic and air conditioning.
Technical Specification
International type | Size(mm) | Fire Performance | Concentrated load | Impact load (N) | Ultimated load (N) | Uniform Load (N/m2) | Rolling load(N) | |||
LB | N | KG | 10 times | 100000 times | ||||||
FS1000 | 600x600x40 | A | ≥1000 | ≥4550 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
FS1250 | 600x600x40 | A | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥16680 | ≥33000 | 5560 | 4450 |
FS1500 | 600x600x40 | A | ≥1500 | ≥6675 | ≥670 | ≥1005 | ≥19892 | ≥34500 | 6675 | 5340 |
FS2000 | 600x600x40 | A | ≥2000 | ≥8900 | ≥906 | ≥1340 | ≥26700 | ≥46000 | 8900 | 8000 |
* Thickness could be 40mm and 50mm
