Aluminum Raised Floor System

Aluminium support Aluminium Raised Access Floor

Date:2015-02-12 10:28:45  Visit:

Aluminium support Aluminium Raised Access Floor

Product Brief :

1.The best base material of the raised floor, 100% recycled

2.Full aluminium, die casing, top with HPL/ PVC, excellent antistatic

3.Light and high loading capacity, high dimensional precision

4.Adjustable height for pedestal, assembly agility, large wire, good

exchangeability

5.Convenient removing, long performance life


Product Type : FS1000~FS2000

Details

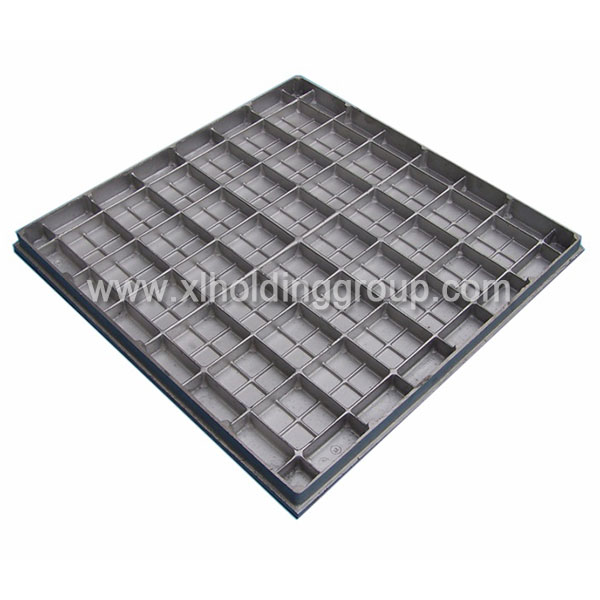

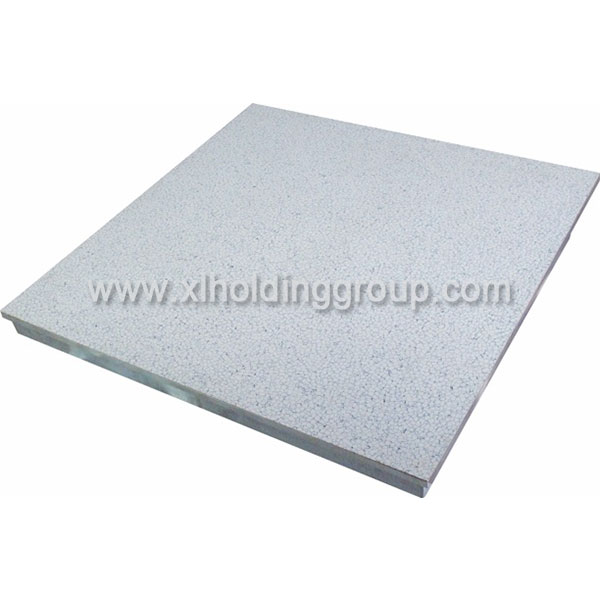

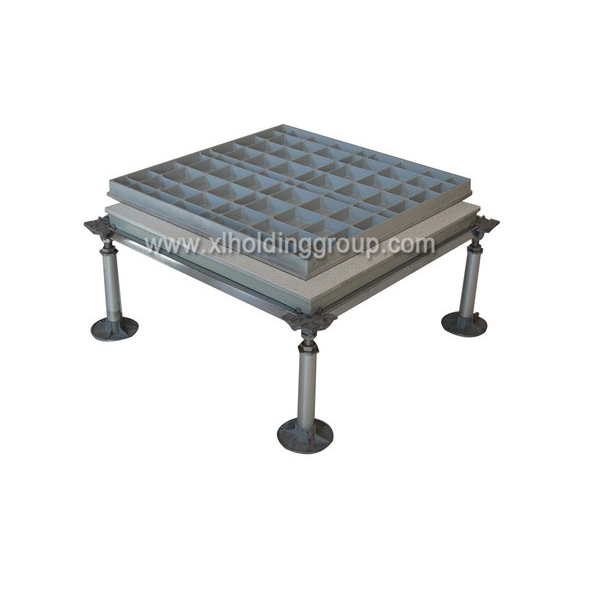

Aluminium Raised Access Floor System


Description


1.The best base material of the raised floor, 100% recycled
2.Full aluminium, die casing, top with HPL/ PVC, excellent antistatic
3.Light and high loading capacity, high dimensional precision
4.Adjustable height for pedestal, assembly agility, large wire, good exchangeability
5.Convenient removing, long performance life


Application


Wide range All manner of computer room, network service room, monitor control center, electronic workshop, clean room, dustlessness chamber etc, and occasions which require on antistatic and air conditioning.


Technical Specification



International type

Size(mm)

Fire

Performance

Concentrated load

Impact load

(N)

Ultimated load

(N)

Uniform

Load

(N/m2)

Rolling load(N)

LB

N

KG

10 times

100000

times

FS1000

600x600x40

A

≥1000

≥4550

≥450

≥670

≥13350

≥23000

4450

3560

FS1250

600x600x40

A

≥1250

≥5560

≥567

≥780

≥16680

≥33000

5560

4450

FS1500

600x600x40

A

≥1500

≥6675

≥670

≥1005

≥19892

≥34500

6675

5340

FS2000

600x600x40

A

≥2000

≥8900

≥906

≥1340

≥26700

≥46000

8900

8000

* Thickness could be 40mm and 50mm

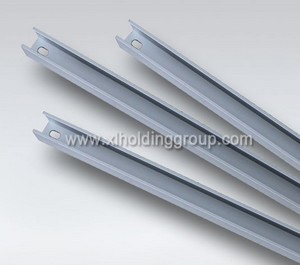

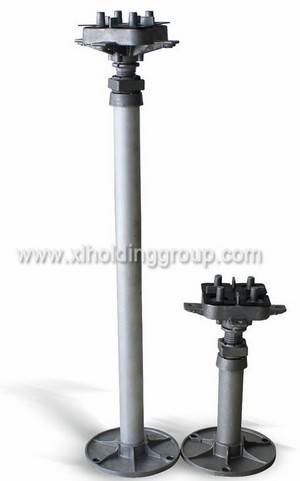

Aluminum pedestal Aluminum stringer
