Bare Finish Steel Raised Access Floor System

Golden New Bare Finished Steel Raised Access Floor

Date:2015-03-13 12:34:03  Visit:

Golden New Bare Finished Steel Raised Access Floor

Product Brief :

1. A Simpler System Design

2. More Friendly Pedestal and Stringer

3. Higher Load Capacity

4. More Appealing Outline

5. A more flexible System






Product Type : FS800~FS2000

Details


Brand Introduction


The brand ATFLOR is a top brand of raised access flooring which hornered 5 kinds of patent design certificate. It originally derived from

a freshman who's confused with the under structure to OA system and Antistatic system. Then designers propose: why not to make it

simpler?  The patent loose laid fasten system is the best design in the raised access flooring area.  Diamond shape at bottom of the

panel is looking nice and loading more.  The whole system is smart for office and data center.


Characteristic


1. A Simpler System Design

ATFLOR doesn’t require changing the type of pedestal and if necessary, suitable stringers are needed for anti-static system.



2. More Friendly Pedestal and Stringer

Traditionally, screw turning goes together with panel installation, which takes time and strength. ATFLOR makes it easier and more efficient; the well designed corner lock allows safe panel installation without screw. Then, screw turning would be a very simple job to finish installation.



3. Higher Load Capacity

With the same material, more strengthening ribs to the panel take better advantage of physical property from steel and cement infill. Those structures appear on the center of panel back and four back edges, which increase the strength of floor panel. Meanwhile, a corner lock nearer to panel center and a suitable stronger pedestal render the system super stable.



4. More Appealing Outline

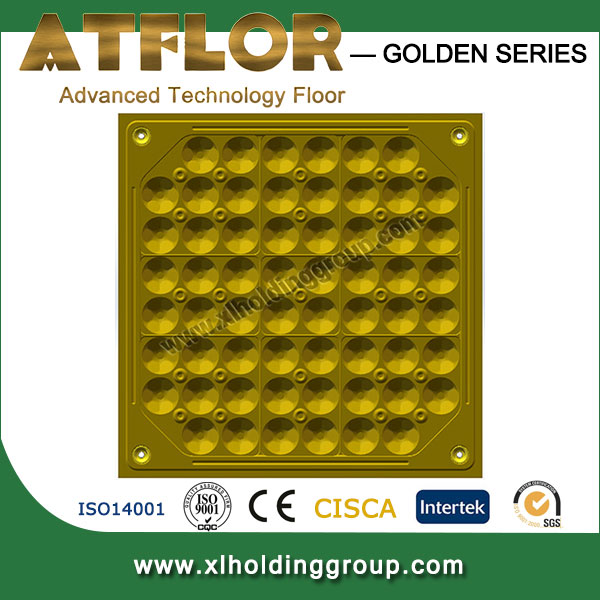

People have been feed up with the semi-ball panel back. While, a diamond ring advertisement brings inspiration to our designers. Now, ATFLOR presents a super attractive diamond panel back to customers.



5. A more flexible System

ATFLOR is born with great flexibility and exchangeability under variety of breakthrough.



Application


Wide range of the application such as 5 class office, Security Union Plaza, Futures Trading Building, and the place demand cabling and wiring, and the aging building floor's reform


Technical Data


International

Size(mm)

Fire

Performance

Concentrated load

Impact load

(N)

Ultimated load

(N)

Uniform

Load

(N/m2)

Rolling load(N)

LB

N

KG

10 times

100000

times

FS800

600x600x35

A

≥800

≥3350

≥363

≥536

≥11250

≥16100

3560

2670

FS1000

600x600x35

A

≥1000

≥4550

≥450

≥670

≥13350

≥23000

4450

3560

FS1250

600x600x35

A

≥1250

≥5560

≥567

≥780

≥16680

≥33000

5560

4450

FS1500

600x600x35

A

≥1500

≥6675

≥670

≥1005

≥19892

≥34500

6675

5340

FS2000

600x600x35

A

≥2000

≥8900

≥906

≥1340

≥26700

≥46000

8900

7120

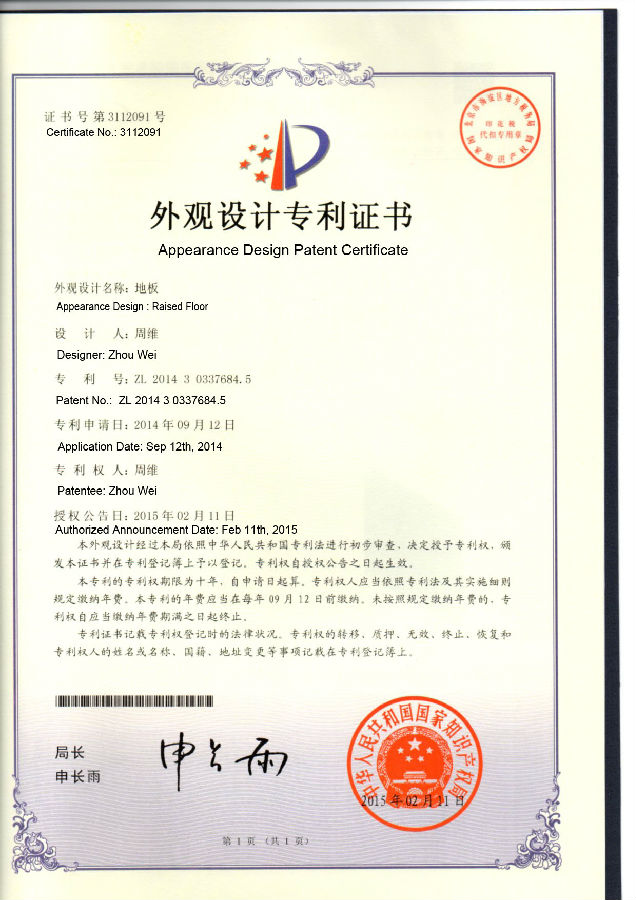

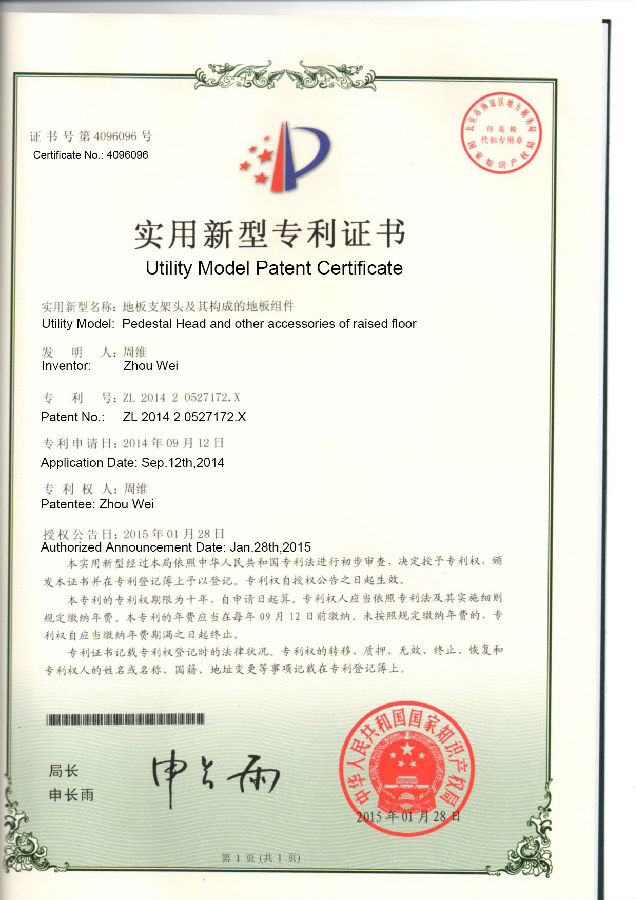

Patent certificate
