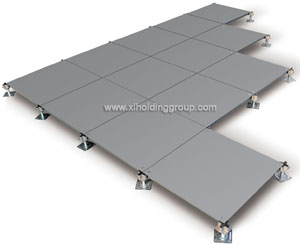

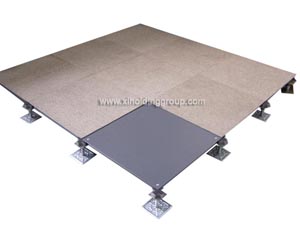

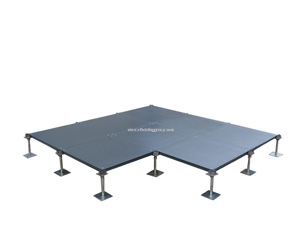

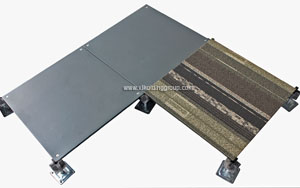

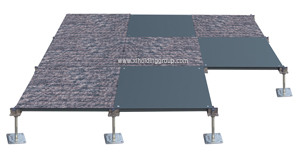

Bare Finish Steel Raised Floor
Details
Product introduction:
Full steel, independent four corners support structure.
Lower steel panel is ST14 stretched plate, top steel plane is SPCC hard steel painted with
conductive epoxy resin, foaming cement infilled, lockhole in four corners. Pedestal is

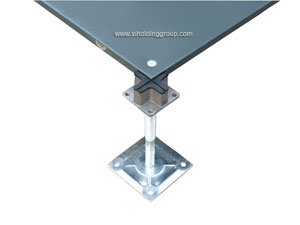

pressured forming with galvanized or cast aluminium, lead screw can be adjusted at discretion.
Details:
Panel Size: 500*500*28mm/600*600*34mm/610*610*34mm;
Certificates: ISO9001, ISO14000, CE, CISCA;
System Height: 8cm~150cm
Advantages:
1.Fireproof ,class A in fire performance, moistureproof, dustproof, shockproof, corrosion prevention
2. High dimensional precision; Strong loading capacity..
3. Adjustable height for pedestal ( applied patent ) , assembly agility, large wire, good exchangeability
4. High recycled, convenient removing, saving cost, long performance life
Application
class 5A office building, computer room and the place which required overhead and large wires. And good for the old office rebuild.
Parameter
International Type | Fire Performance | Concentrated load | Impact load (N) | Ultimate load (N) | Uniform Load (N/m2) | Rolling load(N) | |||
LB | N | KG | 10 times | 100000 times | |||||
FS440 | A | ≥440 | ≥1960 | ≥200 | ≥295 | ≥5880 | ≥9272 | 1958 | 1566 |
FS662 | A | ≥662 | ≥2950 | ≥301 | ≥445 | ≥8850 | ≥1250 | 2946 | 2356 |
FS800 | A | ≥800 | ≥3350 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
FS1000 | A | ≥1000 | ≥4550 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
FS1250 | A | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥16680 | ≥33000 | 5560 | 4450 |
FS1500 | A | ≥1500 | ≥6660 | ≥680 | ≥1005 | ≥19980 | ≥34500 | 5560 | 6675 |
FS2000 | A | ≥2000 | ≥8900 | ≥909 | ≥1340 | ≥26700 | ≥46000 | 8900 | 7120 |
Standard Pedestal Specification
FFH (mm) | Tube Diameter (mm) | Adjustment ± (mm) |
≦150 | Ф18 | 20 |
150~600 | ф25 | 25 |
700~900 | ф32 | 25 |
1000~1500 | ф45 | 25 |
